Project Status



Project Type:  Protected Dug Well

Regional Program: Southeastern Kenya WaSH Program

Impact: 300 Served

Project Phase:  In Service - Jan 2026

Functionality Status:  Functional

Project Features


Click icons to learn about each feature.



In the Ithambwangao Community, 500 people need a nearby, safe water source. Currently, they must trek to a faraway well in another community, consuming much of their day to collect limited amounts of water. The arduous journey drains away their precious time and saps their energy, leaving them with scarce resources for anything else.

The landscape is harsh and unforgiving in this semi-arid area. To collect water, community members must journey under the hot sun for up to an hour each way.

Twelve-year-old Cynthia is familiar with the hardship of collecting water each day.

"Fetching water takes so much time. Sometimes, I miss classes just to help my family. I want to learn and do well in school, but when I’m tired and have to study by candlelight, it’s hard. I wish we had more water close by so I could focus on my studies and not worry about carrying heavy buckets every day. Water should be for learning, not just for living," shared Cynthia.

Cynthia.

"Fetching water takes so long because we have to walk so far, often up and down hills, and sometimes we have to wait in line. The jerry cans are heavy, and if the well runs dry, we might have to go even further. Water is so important for our families, but it shouldn’t have to be such a long journey."

Even in the midst of an incredibly challenging life, Cynthia tries to make the best of it.

"When I'm sent to fetch water, I feel like a little hero on an adventure. I know it’s important for my family, but sometimes the journey feels long and tiring. Still, I try to be brave because every drop I carry is a step toward a brighter day!"

Primary water source.

Cynthia is brave for taking on the difficult task of collecting water every day for her family but she doesn't really have a choice. It's a necessity for survival. This courageous child deserves accessible water.

If her community had a sand dam and a well, then she could quickly collect water and still have time for other things. This would give her a great deal of freedom and allow her time to focus on her learning.

"If I didn’t have to spend all that time getting water, I would play with my friends, explore the world around me, and dream big. Having more time would mean more adventures, more laughter, and more time to be a kid."

Installing a well near Cynthia will help her fulfill her dream of enjoying her childhood.

Solving the water crisis in this community will require a multifaceted system that will work together to create a sustainable water source that will serve this community for years to come.

Note: Our proposed water point can only serve 300 people per day. We are working with the community to identify other water solutions that will ensure everyone has access to safe and reliable drinking water.

Steps Toward a Solution

Our technical experts worked with the local community to identify the most effective solution to their water crisis. Together, they decided to construct a dug well and sand dam.

Dug Well Near A Sand Dam
Once a sand dam is installed and has time to mature by gathering sand and silt, groundwater increases significantly in the entire area surrounding the project. This provides a reliable source of groundwater that wasn’t possible before. As a result, wells can be constructed to take advantage of the water stored and filtered in the collected sand.

During construction, we build a platform for the well and attach a hand pump. The community gains a safe, enclosed water source capable of providing approximately five gallons of water per minute.

This dug-well will be connected to a sand dam to obtain water.

Community Education & Ownership
Hygiene and sanitation training are integral to our water projects. Training is tailored to each community's specific needs and includes key topics such as proper water handling, improved hygiene practices, disease transmission prevention, and care of the new water point. Safe water and improved hygiene habits foster a healthier future for everyone in the community. Encouraged and supported by the guidance of our team, a water user committee representative of the community's diverse members assumes responsibility for maintaining the water point, often gathering fees to ensure its upkeep.

Project Updates


January, 2026: Ithambwangao Community Well Complete!

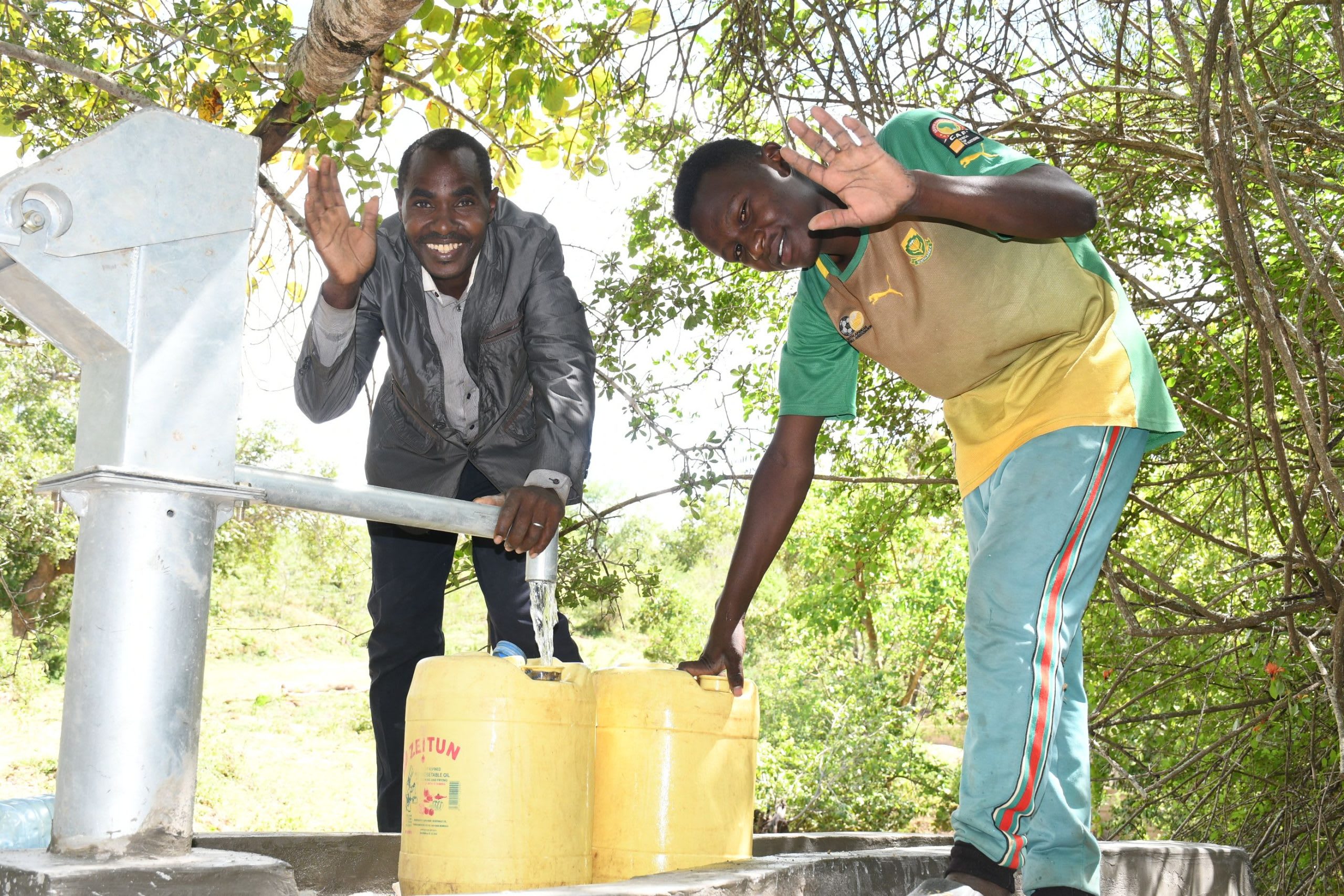

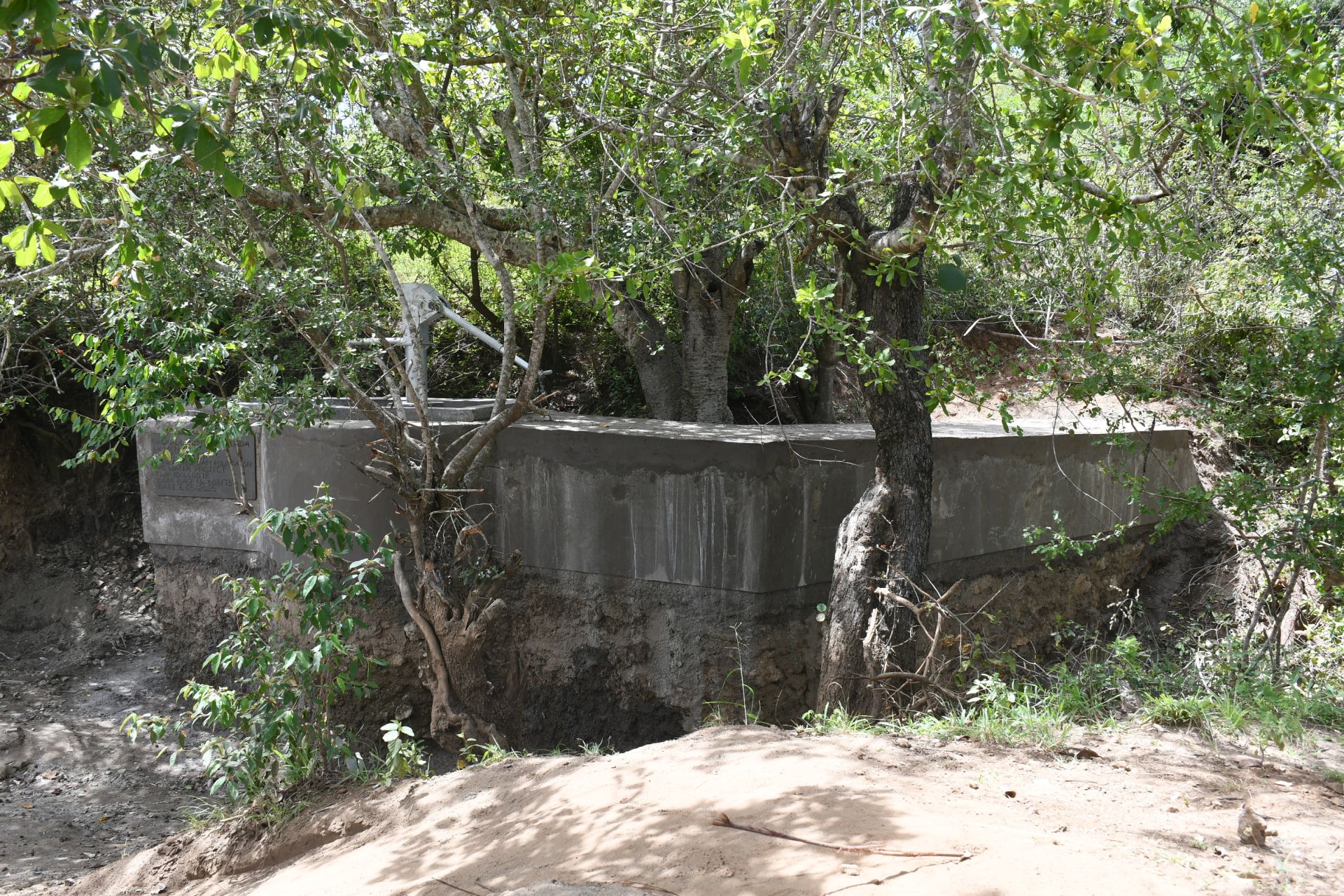

The Ithambwangao Community in Kenya now has a new water source thanks to your donation! We constructed a new protected dug well adjacent to a new sand dam on the riverbed. The sand dam will raise the water table and naturally filter water, while the well will provide a safer method of drawing drinking water for the community.

It could take up to three years of rain for the sand dam to reach its maximum capacity, as rainfall is often scarce in this region, occurring only once a year. As the sand dam matures and stores more sand, the surrounding landscape will become lush and fertile, and the well will fill with water.

"Reliable water will improve many things for me. I will no longer have to wake up very early or walk far to fetch water. I’ll have clean water to drink, wash my hands, and help my family with chores. It means I won’t be as tired at school, and I’ll have more time to study and play with my friends," said 10-year-old Ann.

"This new waterpoint will help my parents because they will have water close by for cooking, cleaning, and farming. They won’t be as tired or worried anymore. They will also get more time and energy for taking care of me, farming, and doing various household chores," she continued.

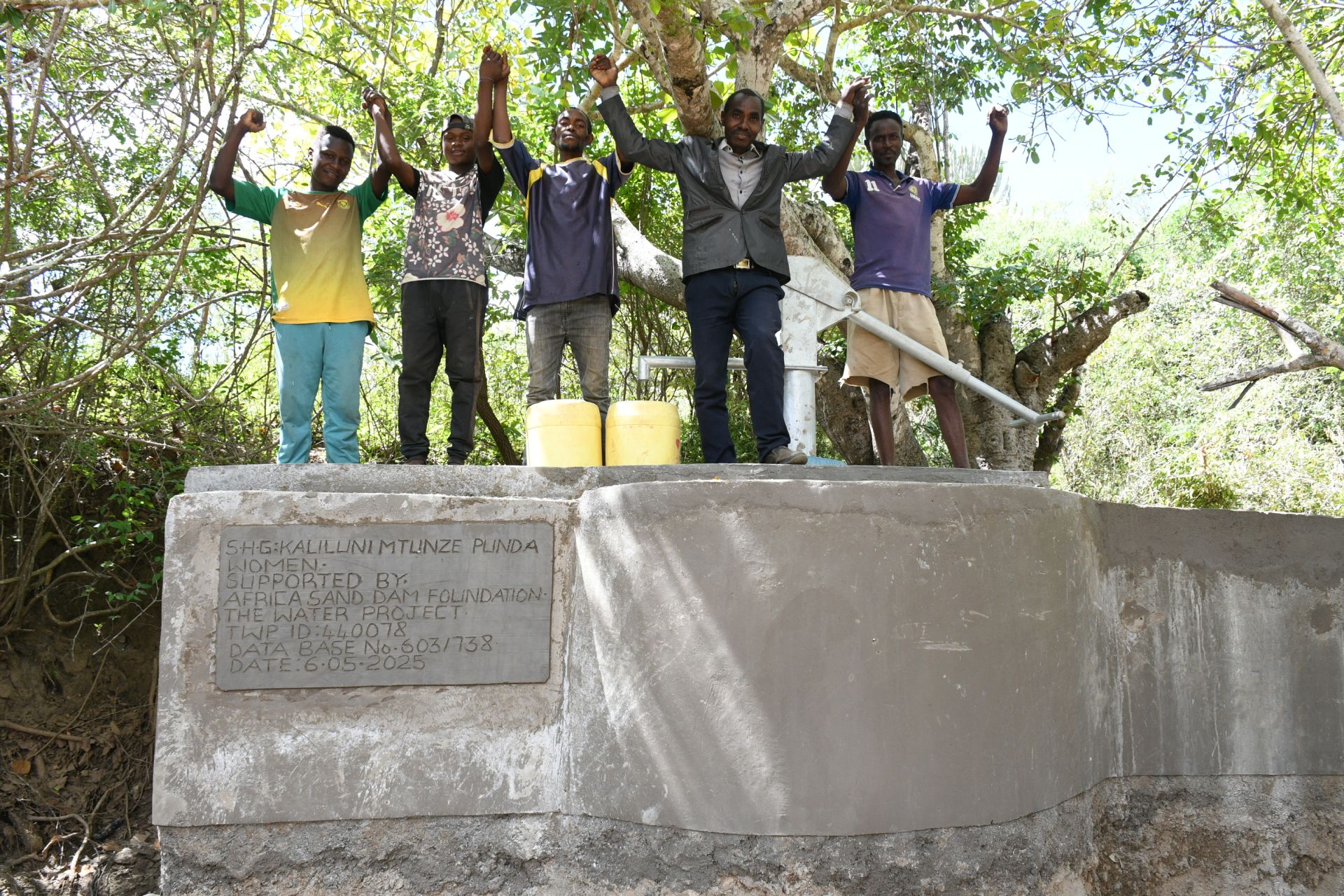

Protected Dug Well Construction

Construction for this well was a success!

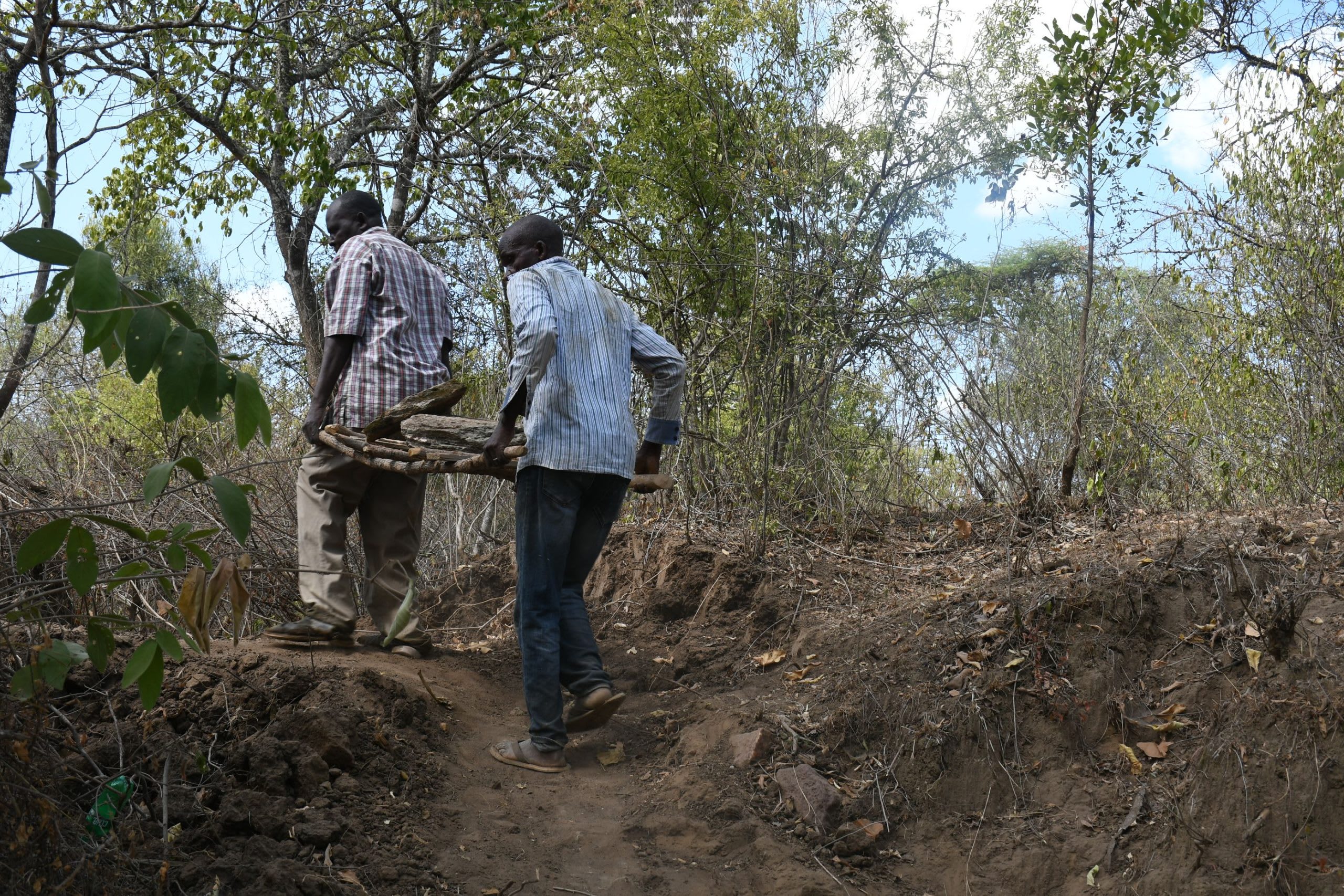

We delivered the experts, materials, and tools, but the community also contributed significantly to an extraordinary amount of work being done. They collected local materials to supplement the project, including sand, stones, and water. Once all the materials were ready, it was time to dig in!

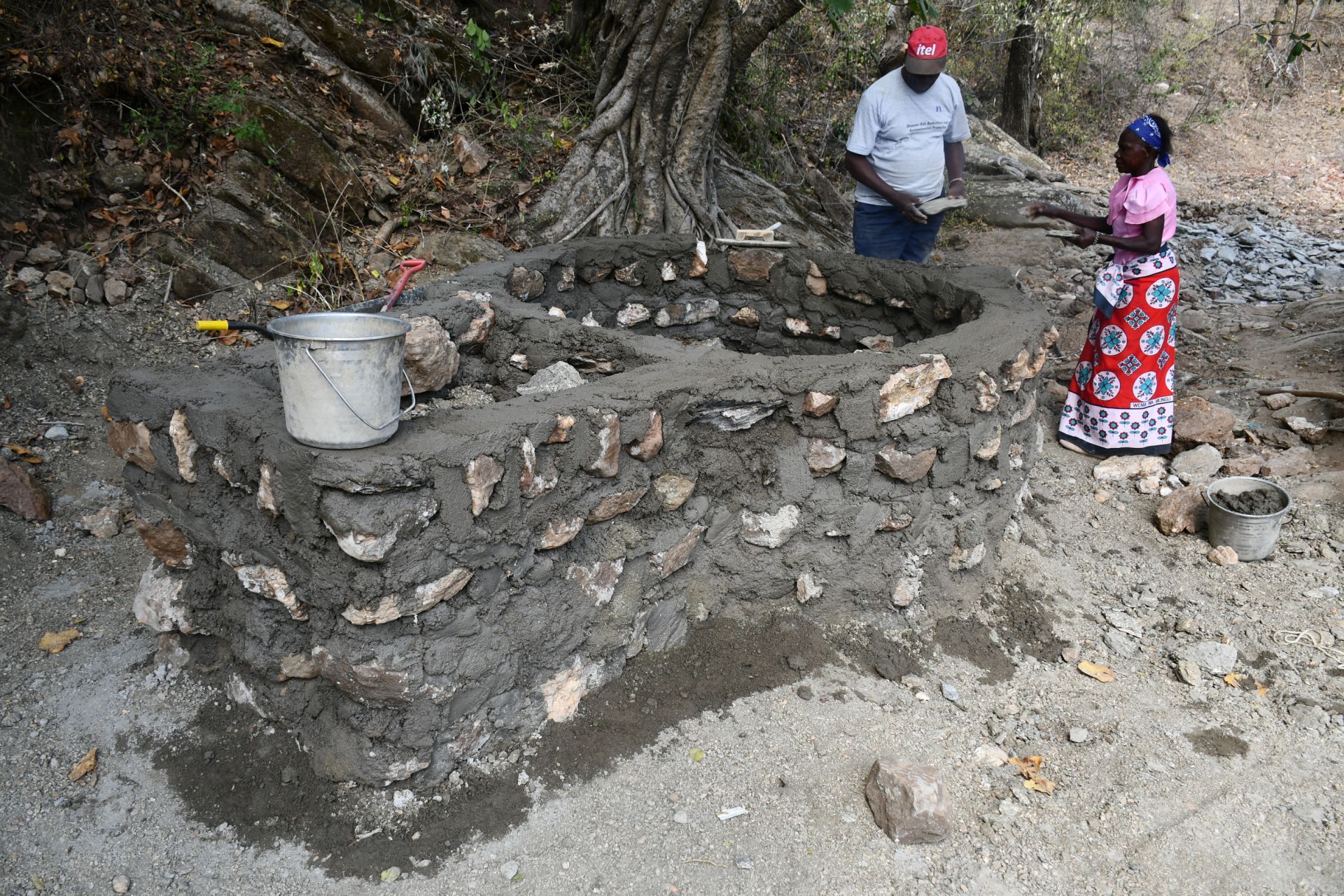

First, we excavated a hole seven feet in diameter down to the recommended depth of 25 feet. The well lining was constructed using brick and mortar with perforations to allow water to seep through. Now that the well is finished, sand builds up around its walls, which will filter the water stored behind the dam.

Once the well walls and lining were complete, we laid a precast concrete slab on top and joined it to the wall using mortar. The concrete dried for two weeks before installation.

Next, the mechanics arrived to install the well pump, as community members watched and learned how to manage simple maintenance tasks. We installed the pump level with the top of the sand dam. As the dam matures, sand will build up to the top of the wall. Until then, people will use concrete steps to get water. After installing the pump, we gave the well another few days to dry.

We worked with the Kaliluni Mtunze Punda Self-Help Group for this project. The members and their families contributed tremendous amounts of materials and physical labor.

Community Education

Our trainer collaborated with the field staff and community members to identify areas where the community could improve.

As we’ve worked with this Self-Help Group in the past, we asked them about the subjects on which they needed refresher training.

Participants using the newly constructed tippy tap.

We conducted a session on how to construct a tippy tap handwashing station. Trainer Veronica Matolo shared, "This activity entailed construction of a simple handwashing facility using locally available materials, and it's constructed outside a latrine to remind people that it’s important to wash their hands after visiting [the] latrine. As the activity was in progress, the homestead owner appointed one of his best friends to construct a latrine squat hole cover for him. A very interesting move since he also said that by the time we left his home [he wanted] to ensure that he had all the missing sanitation infrastructures, which were the two: [a] squat hole cover and a tippy tap."

We trained the group on various skills, including bookkeeping, financial management, project management, group dynamics, and governance. We conducted hygiene and sanitation training to teach skills such as soap and detergent making and to improve habits, including handwashing.

We covered health problems in the community, including good and bad hygiene habits, as well as the prevention of disease. Finally, we covered both natural resource management and the operation and maintenance of the sand dam.

Lucia Francis.

"The lessons taught in training will truly help in disease prevention. New members have had an opportunity to learn these practices, and [this] will also be helpful to them. Soap and latrine disinfectant making will continue to help us generate more income as a group," shared 61-year-old Lucia Francis.

Thank you for making all of this possible!




December, 2025: Exciting Progress in Ithambwangao Community!

We’re thrilled to share that, thanks to your generous support, significant change is coming for Cynthia and the entire Ithambwangao Community. Construction has begun on the well project, bringing them one step closer to having clean, reliable water.

But that's not all—during construction, we’re also providing vital health training. These sessions equip the community with essential hygiene practices, ensuring that the benefits of clean water extend to lasting health improvements.

We’re so grateful for your role in making this possible. Stay tuned for more updates—soon, we’ll be celebrating the arrival of safe water in Ithambwangao Community!




Project Photos


Project Type

Protected Dug Well

Dug wells have been an important source of water throughout human history! Now, we have so many different types of water sources, but protected dug wells still have their place. Protected dug wells are not as deep as borehole wells, and work best in areas where there is a ready supply of water just under the surface of the ground, such as next to a mature sand dam. Our artisans dig down through the layers of the ground and then line the hole with bricks, stone, or concrete, which prevent contamination and collapse. Then, back up at surface level, we install a well platform and a hand pump so people can draw up the water easily.
