Project Status



Project Type:  Borehole Well and Hand Pump

Regional Program: Western Kenya WaSH Program

Impact: 1,327 Served

Project Phase:  In Service - Dec 2023

Functionality Status:  Functional

Last Checkup: 09/07/2024

Project Features


Click icons to learn about each feature.



The hand-dug well and the rainwater tanks at Malava Primary School do not provide sufficient water for 1,300 students and 27 staff, especially during the dry season when the well and the water tanks run dry.

Crowding at the hand-dug well, which is the school's primary water source, starts early in the morning by the boarding students who try to be first so they have time to prepare themselves before class. Accessing the water is tedious as it involves dropping a container into the well and pulling it up by hand.

Students' impatience with one another has led to fights in the past, which are especially dangerous since it is an open well. Later in the morning, when the other students arrive and the demand increases, the situation worsens, and tensions run even higher.

Linda N., a 12-year-old student at the school, commented, "Things get worse when it's the dry season. We literally fight at the water tanks since the shallow hand-dug well dries up. We never get enough during this period."

Joslet Lishindu, the 32-year-old school bursar (financial manager), also shared her concerns. "My heart skips when pupils crowd at the open hand-dug well. I see the danger that looms at this water point every day."

To make matters worse, the water that students are quarreling over is not safe for consumption. Those drinking the contaminated water have experienced water-related illnesses like typhoid and diarrhea, causing them to miss valuable learning time.

With a new well, students can focus on learning and not spend so much physical and emotional energy fighting with one another or for water every day.

Note: Our proposed water point can only serve 300 people per day. We are working with the community to identify other water solutions that will ensure all 1,327 people have access to safe and reliable drinking water.

What We Can Do:

New Well

We conducted a hydrogeological survey at this school and the results indicated the water table beneath it is an ideal candidate for a borehole well. Due to a borehole well's unique ability to tap into a safe, year-round water column, it will be poised to serve all of the water needs for this school's large population, even through the dry months.

The school will help collect the needed construction materials such as sand, rocks, and water for mixing cement. They will also provide housing and meals for the work team, in addition to providing local laborers. We will complement their materials by providing an expert team of artisans and drilling professionals, tools, hardware, and the hand-pump. Once finished, water from the well will then be used by the school's students and staff for drinking, handwashing, cooking, cleaning, and much more.

Handwashing Stations

There is currently nowhere for students to wash their hands after using the latrines or before eating lunch, let alone the water to do so.

The student health club will oversee the two new handwashing stations we will provide, and make sure they are kept clean and in working condition. The club leaders will fill the handwashing stations with water daily and make sure they are always supplied with a cleaning agent such as soap or ash.

VIP Latrines

We will construct two triple-door latrine blocks using local materials that the school will help gather. Three doors will serve the girls and three doors will serve the boys. All of these new latrines will have cement floors that are designed to be easy to use and to clean. And with a rain tank right on school property, there should be enough water to keep them clean.

Training on Health, Hygiene, COVID-19, and More

We will hold a one-day intensive training session with students, teachers, and parents. This training will cover a wide range of topics including COVID-19 symptoms, transmission routes, and prevention; personal and environmental hygiene; and the operation and maintenance of the rain tank, latrines, and handwashing stations. There will be a special emphasis on handwashing.

Our team of facilitators will use a variety of methods to train, including participatory hygiene and sanitation transformation, and asset-based community development. We will initiate a student health club, which will prepare students to lead other pupils into healthy habits at school and at home. We will also lead lectures, group discussions, and provide illustrative handouts to teach health topics and ways to promote good hygiene practices within the school including handwashing and water treatment. We will then conduct a series of follow-up trainings before transitioning to our regularly scheduled support visits throughout the year.

We and the school strongly believe that all of these components will work together to improve standards at this school, which will help lead to better student academic performance and will help unlock the opportunity for these students to live better, healthier lives.

Project Updates


December, 2023: Malava Primary School New Well Complete!

We are excited to share that Malava Primary School in Kenya now has access to a new safe water source thanks to the completion of their borehole well! Students and staff are already using the well’s flowing water, which will provide them with a reliable water source for all of their daily needs.

We also installed new latrines and handwashing stations and trained students and staff on improved sanitation and hygiene practices. Together, these components will unlock the opportunity for these students to live better, healthier lives.

"A lot will now change in my life while at school. My life will be safe now within the school walls. I'll be [able] to concentrate more in class for my national final examination this year. I used to waste so much time, especially in the evening going to fetch water. That time will be used for personal study time," said 14-year-old Sasha N.

Teachers were just as excited as the students about the new well on campus.

"My health will no longer be in danger due to dirty water consumption. I can comfortably drink water from this new water point for I believe it's clean and safe for drinking," said teacher Kennedy Nabwire.

"I'll be able to have my pupils in class full time for the lessons. This will simply result in a completed syllabus on time, which will eventually result in good academic results. The UNDP Ecosystem project of tree planting in our school will be a success now. Pupils will have enough water to water the tree seedlings, and this will be a great boost to our finances and also to our environment. We will have lots of trees in our school," continued Kennedy.

How We Got the Water Flowing

Parents, staff, and students all contributed to this well’s success. After determining the best site for the well through a hydrogeological survey, we obtained approval and a license from the government to begin drilling.

To prepare, the school collected fine sand and water for cement-making. When everything was ready, our drill team and staff arrived at the school to begin work.

Drilling begins!

Drilling commenced with excitement in the air. The team drove down a temporary casing to keep the walls from collapsing as the rig progressed. We continued drilling to reach a final depth of 80 meters with a final static water level of 10.4 meters.

The drilling process can take up to three consecutive days to complete due to this region’s hard bedrock, so the drill team set up a camp where they could rest and refuel. The school’s kitchen staff and parents helped provide meals for the team, while the school provided a safe place for the artisans’ accommodations and materials.

Once we reached the required depth, the team replaced the temporary casing with a permanent version, then bailed out the dirty water at the bottom of the well. The workers installed pipes, flushed them, tested the well’s yield, and chlorinated the water.

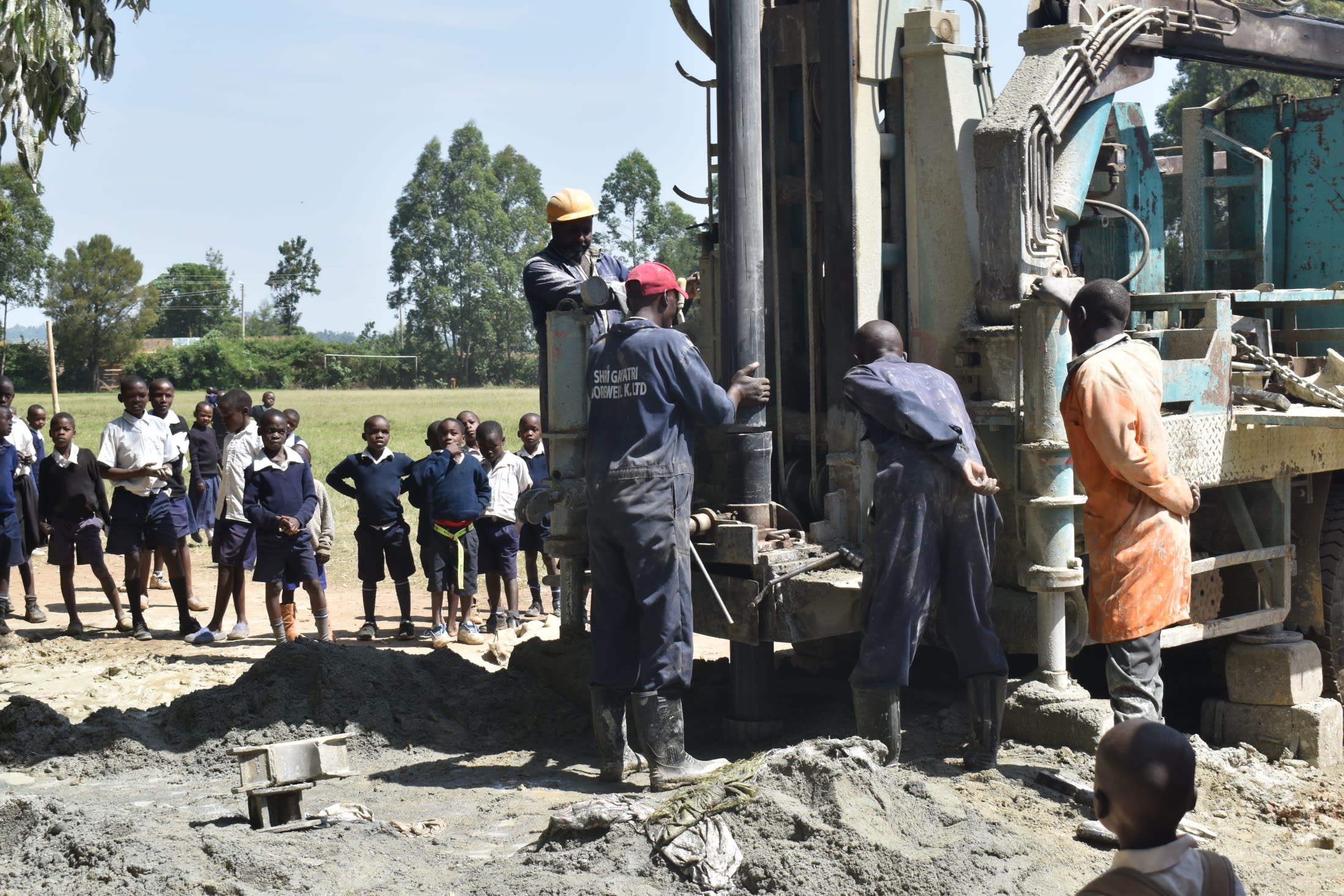

Drilling continues while children look on.

After water treatment, we constructed a cement well pad to seal off the well from any ground-level contaminants. Tiles are installed beneath the spout to protect the cement from the erosive force of the water.

We also included a short drainage channel to carry spilled water away from the pump and prevent standing water. A soak pit absorbs runoff at the end of the drainage channel, further eliminating any stagnant water.

When the well pad was dry, we installed a new stainless steel AfriDev handpump and sampled the water for a quality test. The results showed this water was safe for drinking!
We officially handed over the new borehole to the school’s students and teachers.

Testing the pump.

Students and staff celebrated the presence of clean water on campus. The event was an excellent chance to acknowledge the school administration and students as the primary parties entrusted with the tools we have given and remind them of our continued support as they develop. Happiness, thanksgiving, and appreciation were the order of the day, flowing in all directions.

VIP Latrines

This project funded the installation of six new ventilated improved pit (VIP) latrines. These new latrines have cement floors designed to be easy to use and clean, locking doors for safety and privacy, and vents to keep air flowing up and out through the roof. With a well right on school property, there should be enough water to keep them clean.

Handwashing Stations


We set up two handwashing stations outside the latrines and handed them over to the newly formed student health club. Health club members will teach other students how to wash their hands at the stations properly, fill the stations with water, and ensure that there is always a cleaning agent available.

New Knowledge

We scheduled hygiene and sanitation training with the school’s staff, who ensured that the training date would be convenient for pupils and teachers. When the training day arrived, facilitator Lillian deployed to the site to lead the event. 21 students and teachers attended the training, which we held under some shade trees in a field at the school.

Learning to make soap.

We focused on personal, menstrual, oral, and environmental hygiene; proper water handling; soap-making and the ten steps of handwashing; the importance of primary health care, the prevention of teen pregnancy and COVID-19; child rights; the operation and maintenance of the pump, well, latrines, and handwashing stations; and leadership and governance. During the latter, the students elected their peers to lead their newly formed student health club.

The student health club members will encourage good health and hygiene practices amongst their peers, teachers, and the larger community. By the end of the training, each pupil understood their role in sustaining clean water and good health within their school community.

"The most memorable topic during this training was personal hygiene. The participants, especially those who are boarders in this school, exclaimed in awe how one could take a bath twice in a day when they were experiencing such water scarcity in their school. The boys laughed their hearts out as the girls narrated how they (the boys) go days without a bath until checkup is done by the teachers. The facilitator encouraged them to take their personal hygiene at all levels seriously once the project is completed and water flow is plenty," said Field Officer Lillian Achieng.

Lillian continued: "The second topic that was [discussed on] the day was child's rights. Having defined what a right is and having mentioned some of their rights as children, the participants wondered and questioned why they are always silenced by most grown-ups when they insist on having their rights. [The] right to self-expression was one of the rights that they claimed had been denied especially by teachers when there is a case to answer. They requested [of] their teachers that they let them explain themselves whenever there is a case before they can punish them."

"This training will be of great importance to me because I have been imparted with a lot of knowledge on sanitation and hygiene. I'll be able to help my mum make some soap if she buys the reagents. I believe sanitation in my school will move to a higher notch since I am a member of the CTC (a child health club), and the mandate of maintaining cleanliness has first been bestowed on us. I am a pioneer of high standards of cleanliness both at home and in school," said 12-year-old Caroline M.

Conclusion

This project required a substantial collaboration between our staff, our in-country teams, and the community members. When an issue arises concerning the well, the students and teachers are equipped with the necessary skills to rectify the problem and ensure the water point works appropriately. However, if the issue is beyond their capabilities, they can contact their local field officers to assist them.

Also, we will continue to offer them unmatchable support as a part of our monitoring and maintenance program. We walk with each community, problem-solving together when they face challenges with functionality, seasonality, or water quality. Together, all these components help us strive for enduring access to reliable, clean, and safe water for this community.

With your contribution, one more piece has been added to a large puzzle of water projects. In Kenya, Uganda, and Sierra Leone, we’re working toward complete coverage. That means reliable, maintained water sources within a 30-minute round trip for each community, household, school, and health center. With this in mind, search through our upcoming projects to see which community you can help next!

Thank you for making all of this possible!




October, 2023: Malava Primary School Well Underway!

The lack of adequate water at Malava Primary School costs students time, energy, and health every single day. Clean water scarcity contributes to community instability and diminishes individuals’ personal progress.

But thanks to your recent generosity, things will soon improve here. We are now working to install a reliable water point and improve hygiene standards. We look forward to sharing inspiring news in the near future!




Project Photos


Project Type

Abundant water is often right under our feet! Beneath the Earth’s surface, rivers called aquifers flow through layers of sediment and rock, providing a constant supply of safe water. For borehole wells, we drill deep into the earth, allowing us to access this water which is naturally filtered and protected from sources of contamination at the surface level. First, we decide where to drill by surveying the area and determining where aquifers are likely to sit. To reach the underground water, our drill rigs plunge through meters (sometimes even hundreds of meters!) of soil, silt, rock, and more. Once the drill finds water, we build a well platform and attach a hand pump. If all goes as planned, the community is left with a safe, closed water source providing around five gallons of water per minute! Learn more here!
