Project Status



Project Type:  Protected Spring

Regional Program: Western Kenya WaSH Program

Impact: 150 Served

Project Phase:  In Service - Oct 2022

Functionality Status:  Functional

Last Checkup: 01/13/2023

Project Features


Click icons to learn about each feature.



People in Mukulutsi are sick more often than they aren't. In recent years, a few community members—including children—have died from what they believe are water-related illnesses. But they don't have the money to spare to hire someone to protect their spring. So they keep getting sick and paying for expensive medicines.

And because community members need to spend so much time scooping up water from the spring, each trip to get water takes a long time. With most households needing to make at least four trips to the water point per day, the time adds up quickly. Between being sick and needing to scoop up water so many times each day, this leaves them with hardly any head-space for anything else.

"We have suffered a lot as women and children because I never have time to think of other things than water," explained Mary, a local farmer (pictured above, at the spring). "I believe access to safe water will give families more time to pursue other things like work and education, and this will help us break the cycle of poverty."

Her daughter, Shaleen (in the picture below), echoed the same sentiment. "Fetching water from this source has not been easy because using a scooping jug as a child takes a lot of time. Sometimes I find myself wasting time at the spring instead of doing my homework."

Once the spring is protected, its discharge pipe will allow community members to fill up jerrycans quickly and without the strain associated with stooping and filling each 20 liter jerrycan. Clean water will free up their energy and money for more productive things and prevent further deaths, lifting burdens off of their shoulders. They will be better equipped to support themselves and their loved ones.

What We Can Do:

Spring Protection

Protecting the spring will help provide access to cleaner and safer water and reduce the time people have to spend to fetch it. Construction will keep surface runoff and other contaminants out of the water. With the community’s high involvement in the process, there should be a good sense of responsibility and ownership for the new clean water source.

Fetching water is a task predominantly carried out by women and young girls. Protecting the spring and offering training and support will, therefore, help empower the female members of the community by freeing up more of their time and energy to engage and invest in income-generating activities and their education.

Training on Health, Hygiene, COVID-19, and More

To hold trainings during the pandemic, we work closely with both community leaders and the local government to approve small groups to attend training. We ask community leaders to invite a select yet representative group of people to attend training who will then act as ambassadors to the rest of the community to share what they learn. We also communicate our expectations of physical distancing and wearing masks for all who choose to attend.

The training will focus on improved hygiene, health, and sanitation habits in this community. We will also have a dedicated session on COVID-19 symptoms, transmission routes, and prevention best practices.

With the community’s input, we will identify key leverage points where they can alter their practices at the personal, household, and community levels to affect change. This training will help to ensure participants have the knowledge they need about healthy practices and their importance to make the most of their water point as soon as water is flowing.

Our team of facilitators will use a variety of methods to train community members. Some of these methods include participatory hygiene and sanitation transformation, asset-based community development, group discussions, handouts, and demonstrations at the spring.

One of the most important issues we plan to cover is the handling, storage, and treatment of water. Having a clean water source will be extremely helpful, but it is useless if water gets contaminated by the time it is consumed. We and the community strongly believe that all of these components will work together to improve living standards here, which will help to unlock the potential for these community members to live better, healthier lives.

We will then conduct a small series of follow-up trainings before transitioning to our regularly scheduled support visits throughout the year.

Training will result in the formation of a water user committee, elected by their peers, that will oversee the operations and maintenance of the spring. The committee will enforce proper behavior around the spring and delegate tasks that will help preserve the site, such as building a fence and digging proper drainage channels. The fence will keep out destructive animals and unwanted waste, and the drainage will keep the area’s mosquito population at a minimum.

Project Updates


10/10/2022: Mukhulutsi Community Spring Protection Complete!

Mukhulutsi Community now has access to clean water! We transformed Kokonyo Spring into a flowing source of naturally filtered water thanks to your donation. Our team also trained the community on improved sanitation and hygiene practices. Together, these components will unlock the opportunity for community members to live better, healthier lives.

"[I] am sure I will live a healthy life, free from waterborne illnesses," said 69-year-old farmer Agnes Kokonyo. "[I] am happy that I will be fetching clean water [during] all the seasons, be it the rainy season or dry season. I will have enough time to bond and do other activities with my family. All the money that I used to buy drugs will help me make soap for washing and maintaining good hygiene in my home."

Agnes at the newly protected spring.

Children were just as excited as adults about the new waterpoint.

"I will no longer get sick because we now have clean water flowing," said 14-year-old Samson S. "I will have some time for myself and my siblings. Most of the time, I used to waste a lot of time at the spring, but now I will be able to play after school and be able to do my homework on time."

Samson splashes water.

Preparing for Spring Protection

Community members worked together to source and carry all locally available construction materials to the spring. These included bricks, sand, stones, and fencing poles. Some people also chiseled away at large rocks to break them down into gravel. Because people have to carry most items by hand, the material-collection process can take anywhere from a few weeks to months.

The kids helped, too!

When the community was ready, we sent a lorry to deliver the remaining construction materials, including cement, plastic tarps, and hardware. Then, our construction artisan and field officers deployed to the spring to begin work. Individual households provided meals throughout each day to sustain the work team.

From Open Source to Protected Spring: A Step-by-Step Process

First, we cleared and excavated the spring area. Next, we dug a drainage channel below the spring and several runoff diversion channels above and around the spring. These help to divert surface contaminants away.

To ensure community members could still access water throughout the construction process, we also dug temporary channels from the spring's eye around the construction site. This allowed water to flow without disrupting community members' tasks or the construction work. Excavation created space for setting the spring's foundation, made of thick plastic tarp, wire mesh, concrete, and waterproof cement.

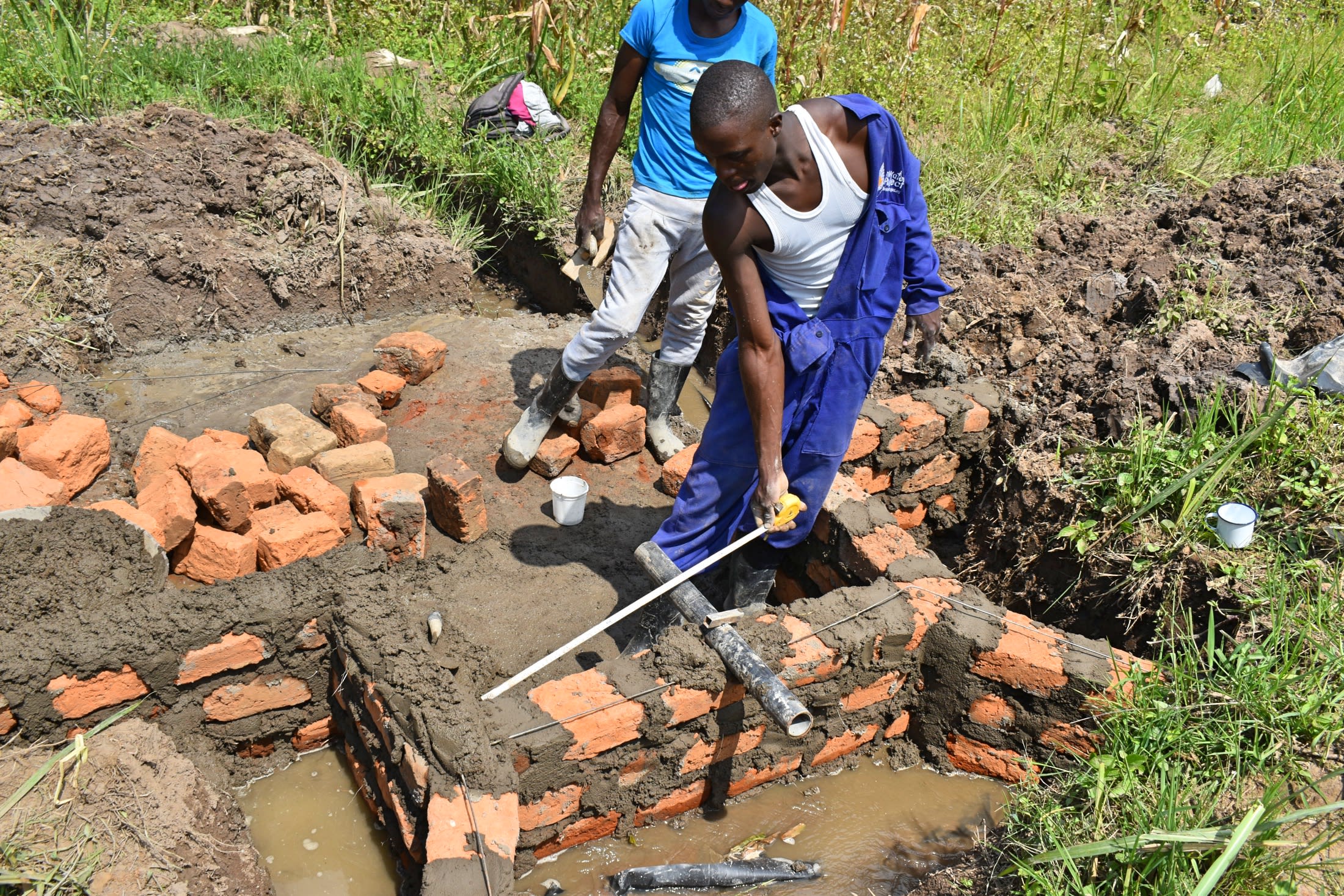

After establishing the base, we started brickwork to build the headwall, wing walls, and stairs. Once the walls had grown tall enough, we began one of the most crucial steps: setting the discharge pipe. The discharge pipe needs to be positioned low enough in the headwall so the water level never rises above the spring's eye, yet high enough to allow room for the average jerrycan (a 20-liter container) to sit beneath the pipe without making contact.

If we place the discharge pipe too high above the spring's eye, backpressure could force water to emerge elsewhere. Too low, and community members would not be able to access the water easily. We embedded the pipe using clay (or mortar when clay is in short supply) and placed it at an incline to ensure water flows in the right direction.

In coordination with brickwork, we pitched stones on both sides of the spring's drainage channel. We then cemented and plastered each stone, forming the rub walls. These walls discourage people and animals from standing in that area, which could cause soil erosion and a clogged drainage area.

We then cemented and plastered both sides of the headwall and wing walls. These finishing layers reinforce the brickwork and prevent water in the reservoir from seeping through the walls. In turn, enough pressure builds in the reservoir box to push water out through the discharge pipe.

As the headwall and wing walls cured, we cemented and plastered the stairs and installed four tiles beneath the discharge pipe. The tiles protect the concrete from the falling water's erosive force while beautifying the spring and facilitating easy cleaning of the spring floor.

The final stage of construction is backfilling the reservoir box behind the discharge pipe. We cleared the collection box of any debris that may have fallen during construction. Then we redirected the temporary diversion channels back into the reservoir box, channeling water into this area for the first time. We closed off all of the other exits to start forcing water through the discharge pipe only.

We filled up the reservoir area with the large, clean stones community members had gathered, arranging them in layers like a well-fitting puzzle. We covered the rocks with a thick plastic tarp to minimize potential contamination sources, then piled enough dirt on top to compensate for future settling.

Community members transplanted grass onto the backfilled soil to help prevent erosion. Finally, the collection area was fenced to discourage any person or animal from walking on it. Compaction can lead to disturbances in the backfill layers and potentially compromise water quality.

The entire construction process took about two weeks of work and patience to allow the cement and plaster to finish curing. As soon as the spring was ready, people got the okay from their local field officers to fetch water.

"After the construction of the spring was completed, we gathered together at the spring with the community members, and the artisan took them through how the spring is supposed to be maintained," said our field officer, Olivia. "After a long discussion, Mrs. Agnes prayed, and after praying, we handed over the spring to the community members, and they were all smiles."

We officially handed over the spring to mark the community's ownership of the water point. Happiness, thanksgiving, and appreciation were the order of the day, flowing in all directions.

Training on Health, Hygiene, and More

Together with the community, we found their preferred date for training while considering other community calendar events, such as the agricultural season and social events. We requested a representative group of community members to attend training and relay the information learned to the rest of their family and friends.

When the day arrived, facilitators Olivia and Victor deployed to the site to lead the event. 15 people attended the training, including 14 women and one man. We held the training at the Kokonyo home since Agnes was our main contact in the community.

We covered several topics, including community participation in the project, leadership and governance, personal and environmental hygiene, water handling and treatment, spring maintenance, dental hygiene, the ten steps of handwashing, disease prevention, and how to make and use handwashing stations.

Kids practice handwashing.

During the leadership and governance session, we held an election for the newly formed water user committee leaders, who will oversee the maintenance of the spring. We also brainstormed income-generating activities. Community members can now start a group savings account for any future minor repairs to the spring and a cooperative lending group, enabling them to develop small businesses.

The most surprising topic for the community members was dental hygiene. They were surprised to learn that tooth decay can cause other major health issues, like heart disease. We gave out toothbrushes to make adopting this practice easier for everyone in Mukhulutsi.

Oral hygiene.

"The training made me realize how I was not maintaining good general hygiene at all," said Agnes (quoted earlier). "With what I have learned now, I will ensure that my grandchildren will wash their hands regularly, brush their teeth daily, and take a shower daily because it is healthy."

Conclusion

This project required a substantial collaboration between our staff, our in-country teams, and the community members themselves. When an issue arises concerning the spring, the water user committee is equipped with the necessary skills to rectify the problem and ensure the water point works appropriately. However, if the issue is beyond their capabilities, they can contact their local field officers to assist them.

Also, we will continue to offer them unmatchable support as a part of our monitoring and maintenance program. We walk with each community, problem-solving together when they face challenges with functionality, seasonality, or water quality. Together, all these components help us strive for enduring access to reliable, clean, and safe water for this community.

With your contribution, one more piece has been added to a large puzzle of water projects. In our target areas, we’re working toward complete coverage of reliable, maintained water sources within a 30-minute round trip for each community, household, school, and health center. With this in mind, search through our upcoming projects to see which community you can help next!

Thank you for making all of this possible!




08/08/2022: Mukhulutsi Community Spring Protection Underway!

A severe clean water shortage in Mukhulutsi Community drains people’s time, energy, and health. Thanks to your generosity, we’re working to install a clean water point and much more.

Get to know this community through the introduction and pictures we’ve posted, and read about this water, sanitation, and hygiene project. We look forward to reaching out with more good news!




Project Photos


Project Type

Protected Spring

In many communities, natural springs exist as water flows from cracks in rocky ground or the side of a hill.  Springs provide reliable water but that doesn’t mean safe. When left open they become contaminated by surface contamination, animal and human waste and rain runoff. The solution is to protect the source. First, you excavate around the exact source area of the spring. Then, you build a protective reservoir for water flow, which pours through a reinforced pipe in a concrete headwall to a paved collection area. Safe water typically flows year-round and there is very limited ongoing maintenance needed!
