July, 2023: Ikoli Community 5 Spring Protection Complete!

Ikoli Community now has access to clean water! Thanks to your donation, we transformed their spring into a flowing source of naturally filtered water. We also installed a chlorine dispenser to provide added protection and trained the community on improved sanitation and hygiene practices. Together, these components will unlock the opportunity for community members to live better, healthier lives.

"Before the water point, getting water was very difficult. I had to wake up as early as five in the morning and go late in the evening so as to be able to go get water before it got crowded. But now, I do not have to worry. I can go at any time knowing that it will not be crowded," said 38-year-old farmer Joyce Adisa.

"I intend to spend more time with my family, especially in the evenings. I would like to be more involved in my children's lives now that I will have time in the evenings," Joyce continued.

Joyce collecting water.

Children were just as excited as adults about the new water point.

"I no longer have to be afraid of long hours at the water point like it was before construction. I hope this will mean more time to engage in other activities around the house. I have had so many arguments with people at the water point because of the scramble for water. Now, I hope I will have better relationships with others and foster unity among us," said 9-year-old Zablon M.

Zablon collecting water.

Preparing for Spring Protection

Community members worked together to source and carry all locally available construction materials to the spring. These included bricks, sand, stones, and fencing poles. Some people also chiseled away at large rocks to break them into gravel. Because people have to carry most items by hand, the material-collection process can take anywhere from a few weeks to months.

Community members help make gravel for the project.

When the community was ready, we sent a truck to deliver the remaining construction materials, including cement, plastic tarps, and hardware. Then, our construction artisan and field officers deployed to the spring to begin work. Individual households provided meals throughout each day to sustain the work team.

From Open Source to Protected Spring: A Step-by-Step Process

First, we cleared and excavated the spring area. Next, we dug a drainage channel below the spring and several runoff diversion channels above and around the spring. These help to divert surface contaminants away.

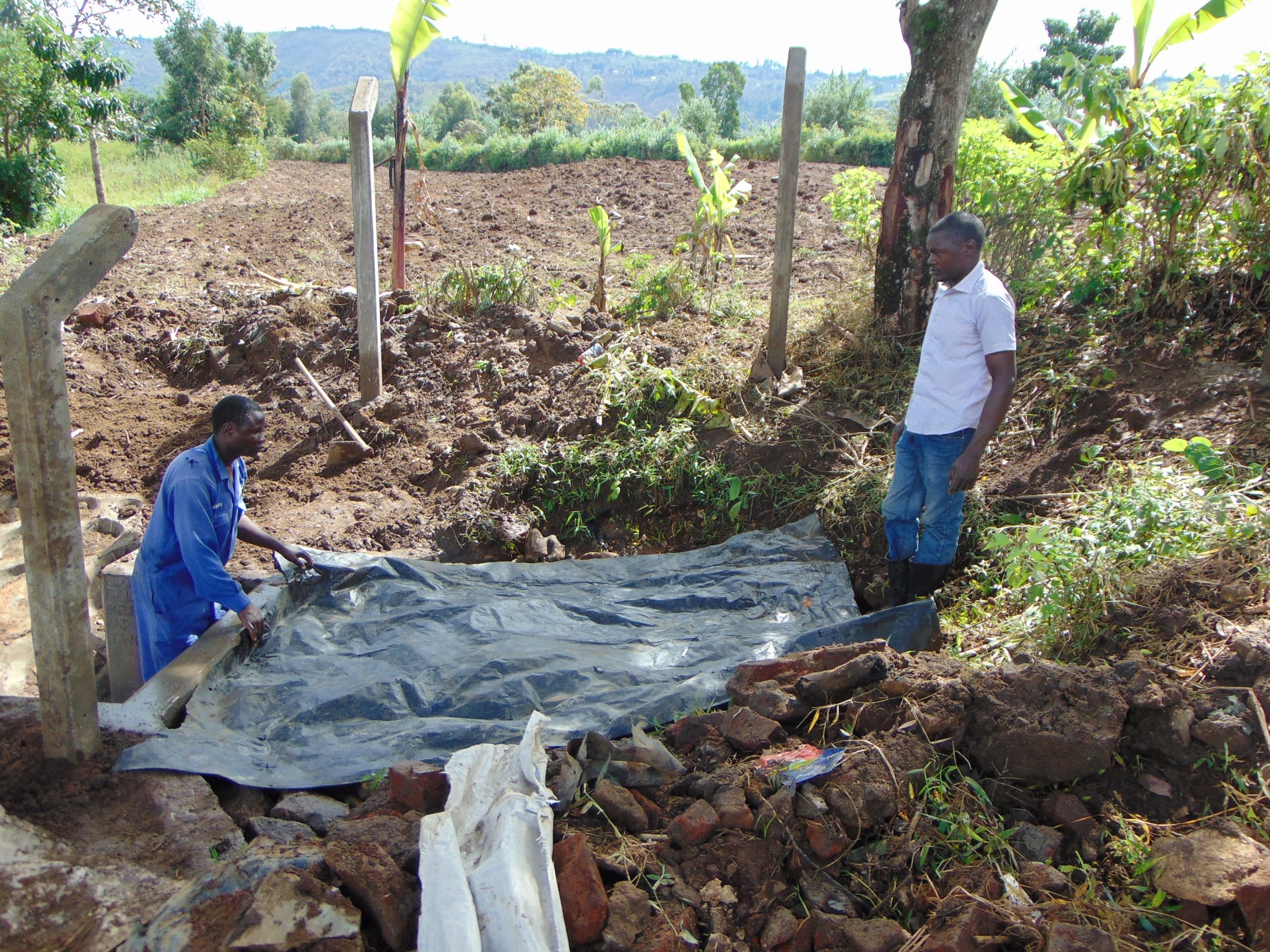

To ensure community members could still access water throughout the construction process, we also dug temporary channels around the construction site from the spring's eye. This allowed water to flow without disrupting community members' tasks or the construction work. Excavation created space for setting the spring's foundation, made of thick plastic, wire mesh, concrete, and waterproof cement.

After establishing the base, we started brickwork to build the headwall, wing walls, and stairs. Once the walls had grown tall enough, we began one of the most crucial steps: setting the discharge pipe. The discharge pipe needs to be positioned low enough in the headwall so the water level never rises above the spring's eye, yet high enough to allow room for the average jerrycan (a 20-liter container) to sit beneath the pipe without making contact, which prevents cross-contamination.

Setting the discharge pipe.

If we place the discharge pipe too high above the spring's eye, back pressure could force water to emerge elsewhere. Too low, and community members would not be able to access the water easily. We embedded the pipe using clay (or mortar when the clay is in short supply) and placed it at an incline to ensure water flows in the right direction.

In coordination with brickwork, we pitched stones on both sides of the spring's drainage channel. We then cemented and plastered each stone, forming the rub walls. These walls discourage people and animals from standing in that area, which could cause soil erosion and a clogged drainage area.

Plastering the walls.

We then cemented and plastered both sides of the headwall and wing walls. These finishing layers reinforce the brickwork and prevent water in the reservoir from seeping through the walls. In turn, enough pressure builds in the reservoir box to push water out through the discharge pipe.

As the headwall and wing walls cured, we cemented and plastered the stairs and installed four tiles beneath the discharge pipe. The tiles protect the concrete from the falling water's erosive force while beautifying the spring and facilitating easy cleaning of the spring floor.

Backfilling the reservoir box.

The final stage of construction is backfilling the reservoir box behind the discharge pipe. We cleared the collection box of any debris that may have fallen during construction. Then we redirected the temporary diversion channels back into the reservoir box, channeling water into this area for the first time. We close all other exits to force water through only the discharge pipe.

We filled the reservoir area with the large, clean stones community members had gathered, arranging them in layers like a well-fitting puzzle. We covered the rocks with thick plastic to minimize potential contamination sources, then piled enough dirt on top to compensate for future settling.

Transplanting grass to prevent erosion.

Community members transplanted grass onto the backfilled soil to help prevent erosion. The collection area was fenced to discourage any person or animal from walking on it. Compaction can lead to disturbances in the backfill layers and potentially compromise water quality.

The construction process took about two weeks of work and patience to allow the cement and plaster to finish curing. As soon as the spring was ready, people got the okay from their local field officers to fetch water.

The completed spring.

We officially handed over the spring to mark the community's ownership of the water point. Happiness, thanksgiving, and appreciation were the order of the day, flowing in all directions.

Training on Health, Hygiene, and More

Together with the community, we found their preferred date for training while considering other community calendar events, such as the agricultural season and social events. We requested a representative group of community members to attend training and relay the information learned to the rest of their families and friends.

When the day arrived, facilitators Rose and Joel deployed to the site to lead the event. 20 people attended the training, including 15 women and 5 men. We held the training outside at a community member's homestead.

Practicing proper hand washing.

We covered several topics, including community participation in the project; leadership and governance; personal, dental, and environmental hygiene; water handling and treatment; spring maintenance; the importance of primary health care and disease prevention; family planning; soapmaking; how to make and use handwashing stations; and the ten steps of handwashing.

During the leadership and governance session, we held an election for the newly formed water user committee leaders, who will oversee the maintenance of the spring. We also brainstormed income-generating activities. Community members can now start a group savings account for any future minor repairs to the spring and a cooperative lending group, enabling them to develop small businesses.

Participants learn how to make soap.

"Reproductive health stood out as the most memorable topic for the day. People shared their experiences or what they had seen other people go through. It was clear that this was a real issue around that community, and many youths were getting pregnant at an early age," said our field officer Patience Wanyoni.

"Operation and maintenance was also a very interesting topic. Before the construction of the water point, people would go to relieve themselves near the water point, which resulted in [the] contamination of water. The people, however, promised to take care of the spring and stop open defecation and washing their clothes near the water point," concluded Patience.

A group photo of the training participants with Joyce (center in the red checkered top).

"I have learn[ed] [about] soap making, something I have always wanted to learn, and I am very excited about it. I hope to share this knowledge with my friends and also use it for my benefit," said Joyce, who was quoted earlier.

Conclusion

This project required a substantial collaboration between our staff, our in-country teams, and the community members. When an issue arises concerning the spring, the water user committee is equipped with the necessary skills to rectify the problem and ensure the water point works appropriately and there is guaranteed public access in the future. However, if the issue is beyond their capabilities, they can contact their local field officers to assist them.

Also, we will continue to offer them unmatchable support as a part of our monitoring and maintenance program. We walk with each community, problem-solving together when they face challenges with functionality, seasonality, or water quality. Together, all these components help us strive for enduring access to reliable, clean, and safe water for this community.

With your contribution, one more piece has been added to a large puzzle of water projects. In Kenya, Uganda, and Sierra Leone, we’re working toward complete coverage. That means reliable, maintained water sources within a 30-minute round trip for each community, household, school, and health center. With this in mind, search through our upcoming projects to see which community you can help next!

Thank you for making all of this possible!

May, 2023: Ikoli Community Spring Protection Underway!

The lack of adequate water in Ikoli Community costs people time, energy, and health every single day. Clean water scarcity contributes to community instability and diminishes individuals’ personal progress.

But thanks to your recent generosity, things will soon improve here. We are now working to install a reliable water point and improve hygiene standards. We look forward to sharing inspiring news in the near future!
