Project Status



Project Type:  Borehole Well and Hand Pump

Regional Program: Port Loko, Sierra Leone WaSH Program

Impact: 400 Served

Project Phase:  In Service - Mar 2023

Functionality Status:  Functional

Last Checkup: 03/06/2024

Project Features


Click icons to learn about each feature.



In the coastal community of Mayonkoh, its 400 community members rely on the water they can collect from an unprotected dug well. Many travel up to an hour each way several times a day to try and collect sufficient water.

Several dangers confront those collecting water. The road to the water point is dangerous, with snakes and crocodiles hiding in the bush. The path can become quite treacherous to navigate in the rainy season when it becomes muddy and slippery. And people are at risk of falling into the huge open hole, especially children.

The water well is exposed to various kinds of contamination; area runoff, trash, animals that drink and defecate near the source, and people bathing and washing laundry nearby. These factors lead to community members suffering from water-related diseases such as cholera, typhoid fever, dysentery, and diarrhea.

Waterborne illnesses make children like Sinnah, B., age 16 (shown below), miss precious time in school. "I have learned that drinking water from an open water source leads to water contamination like cholera and diarrhea. Most often, I am affected by water sicknesses which can also result in absences from school for [a] few days."

There is never enough water to serve the community. The well refills very slowly, especially during the dry season, so families must prioritize water for drinking before domestic activities like farming, bathing, laundry, and cleaning. The ability to produce food or an income suffers due to insufficient water.

Mohamed Sankoh, age 45, a local farmer and fisherman, shared, "Our source of drinking water is a surface water hole dug. We fetch water to do our domestic activities such as cooking, bathing, and laundry. This source is very challenging to access, and it dries every year unless we must dig more depth before we can access water again. This water source cannot serve entire community members due to [the] low quantity it provides in the dry season. This water situation is a burden on us, more especially my children."

Most community members depend on rainwater harvesting during the rainy season because the dug hole becomes flooded, making it dirtier and more challenging to access. However, storing the collected rainwater until the dry season causes further issues because it is unsafe for drinking after being kept for so long.

The proposed well with a handpump project will be located near the mosque in the center of the village, making it accessible for all, and provide clean, safe water to the community throughout the year. Reducing the time and energy community members spend collecting water will allow them to do other endeavors and improve their daily lives.

What we can do:

New Well

Where we will be drilling is centrally located and will relieve many people of the long journey to fetch water and the challenge of accessing clean water.

Our team will drive over the LS200 mud rotary drill rig and set up camp for a couple of nights. Once the well is drilled to a sufficient water column, it will be cased, developed, and then tested. If these tests are positive, our mechanics will install a new India Mark II pump.

By drilling this borehole, Mayonkoh and the surrounding community will be provided with plenty of accessible, clean drinking water.

Training

There will be hygiene and sanitation training sessions offered for three days in a row.

Community members will learn how to make a hands-free handwashing station called the "tippy-tap." We will use these tippy taps for handwashing demonstrations and will also teach about other tools like dish racks and the importance of properly penning in animals. We will highlight the need to keep restrooms clean, among many other topics.

This training will also strengthen a water user committee that will manage and maintain this new well. They will enforce proper behavior and report to us whenever they need our help in solving a serious problem, like a pump breakdown.

Project Updates


March, 2023: Mayonkoh Community Borehole Well Complete!

We are excited to share that there is now a safe, reliable borehole well at Mayonkoh Community. As a result, (the students and) community members no longer rely on unsafe water to meet their daily needs. We also conducted hygiene and sanitation training, which focused on healthy practices such as handwashing and using latrines.

"I am 43 years of age, and this is my first borehole in my life, meaning to say I have been here for over 43 years without a borehole," said community member Mohamed Sankoh, whom we interviewed during our first visit to Mayonkoh. "So, I am grateful to have this water point from [you]. This could be a huge life change for us. There is enough water to use for domestic activities like cooking, bathing, laundry, drinking, and less time spent to fetch a single trip of water. I am over-joyful and just happy."

Mohamed, left, celebrates the new water source in his community.

"The old water source was swamp water that is contaminated, not safe to drink, tastes bad, and it has color," said 16-year-old Sinnah (also interviewed during our first visit). "The new water point is safe and pure to drink. This new water point has enough water to use. This will help me to complete [my] domestic activities on time. I will no longer struggle for water in this community. Thank you for the gift you have supported our community with."

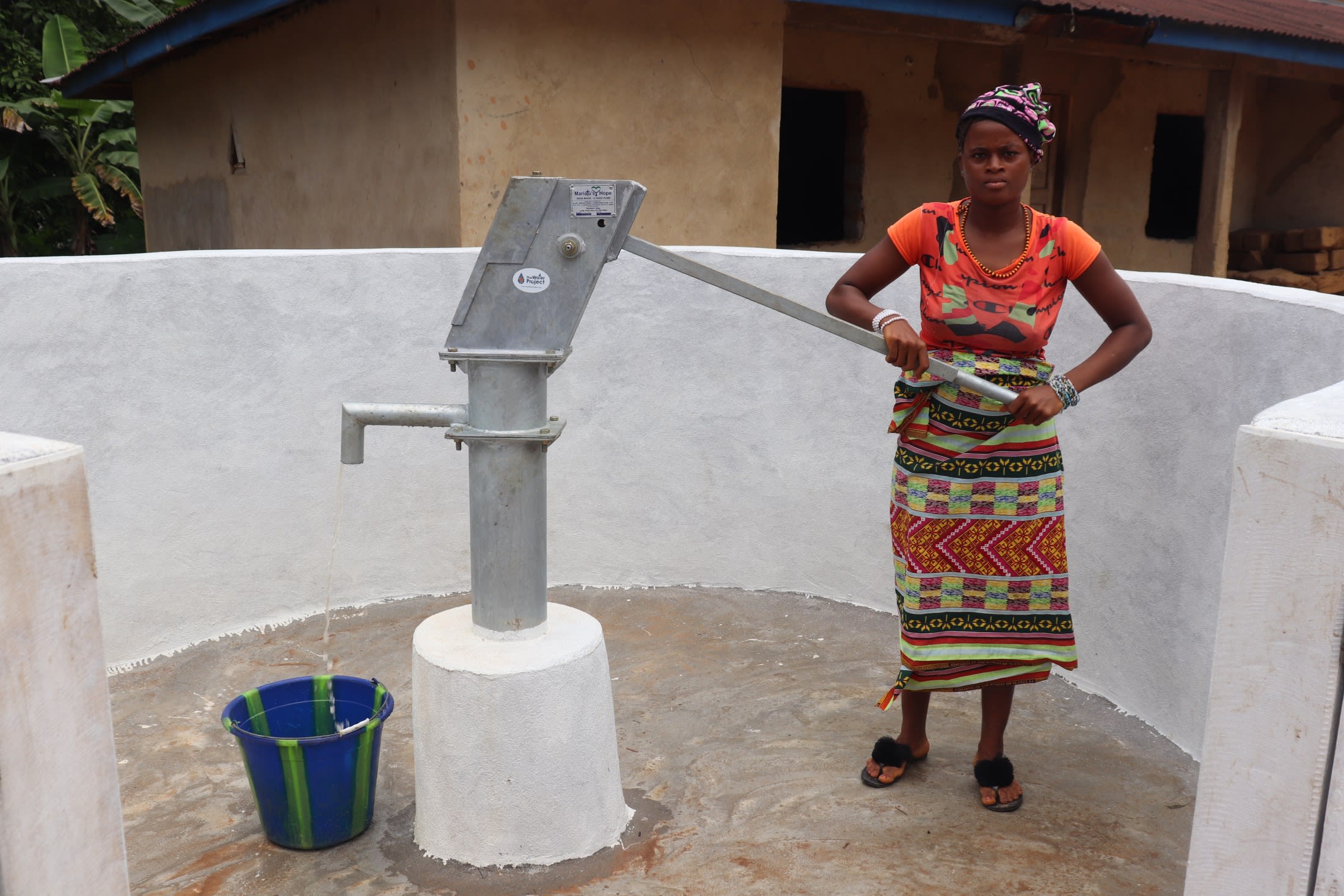

Sinnah collects water at the new well.

We held a dedication ceremony to officially hand over the well to the community members. Several local dignitaries attended the ceremony, including representatives from the Port Loko District Council, the Ministry of Water Resources, and the Ward Council. Each official gave a short speech thanking everyone who contributed to this water project and reminding everyone to take good care of it. Then, Mohamed and Sinnah made statements on their community's behalf. The ceremony concluded with celebration, singing, and dancing.

Mohamed drums for his fellow community members.

New Well

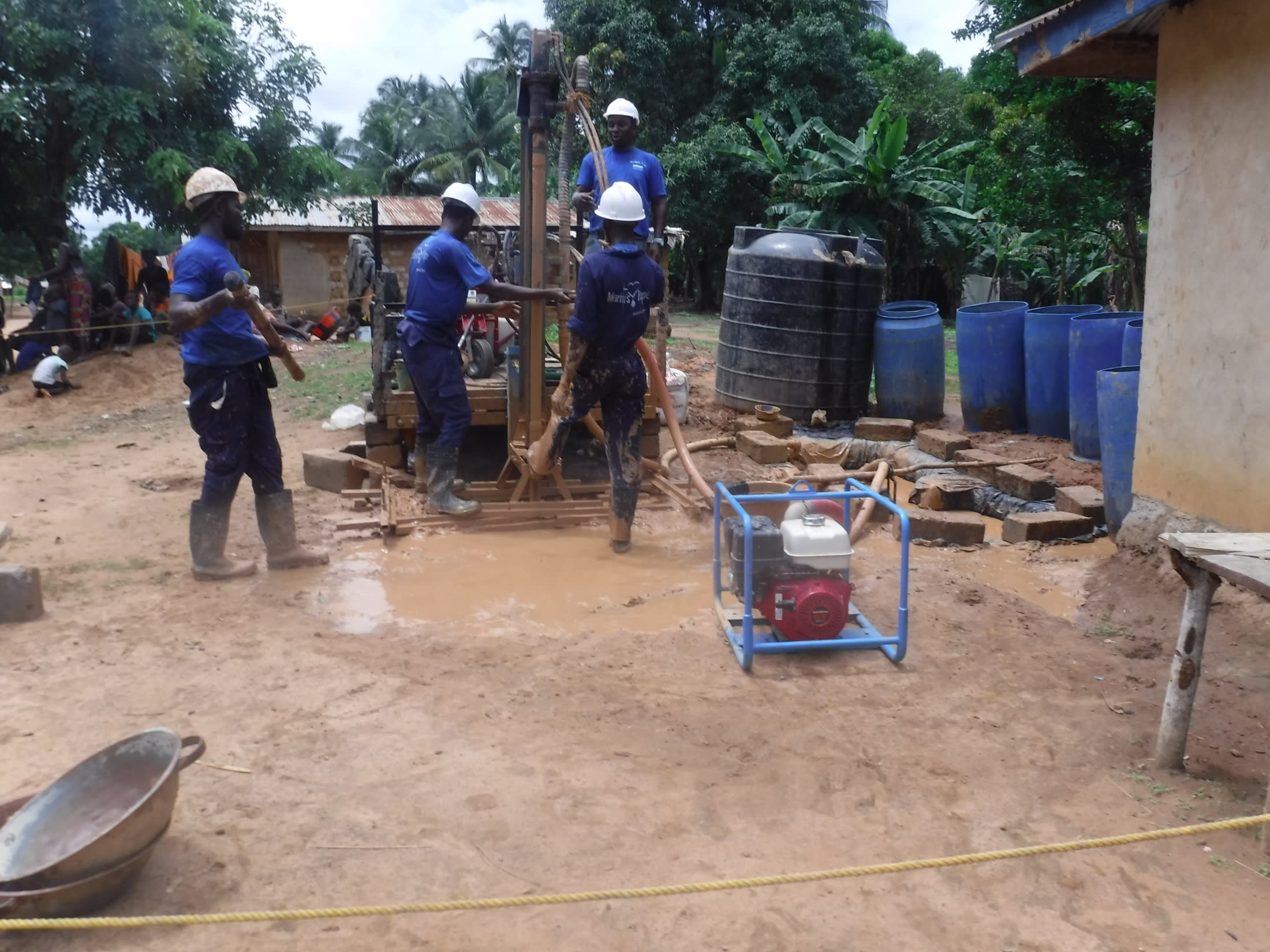

The drill team arrived the day before beginning work. They set up camp and unpacked all their tools and supplies to prepare for drilling the next day. The community provided space for the team to store their belongings and meals for the duration of their stay. The following day, work began.

Our team dug two pits next to the drill rig, one for the drill’s water supply and another for what the drill pulls out of the borehole. In some cases, we order a private supplier to deliver the water for drilling since water access is already challenging.

Day one of drilling began as the team mixed water with bentonite, an absorbent clay, in the two dug pits. Next, the team fixed a four-inch carbide-tipped bit to the five-foot-long drill stem. They started the mud pump to supply water to the drill rig so that drilling could begin!

After putting each five-foot length of drill stem into the hole, the team took material samples. We labeled the bags to review them later and determine the aquifer locations.

On the second day of drilling, the team expanded the hole and cleared it of mud. After reaching a total depth of 24 meters, the team forcefully pumped clean water into the well to remove any dirt and debris from the drilling process. We then protected the screened pipe by adding a filter pack. The team hoisted the temporary drilling casing to fortify the pipes with cement.

Bailing.

Next, we bailed the well by hand for three days before conducting a yield test to verify the water quantity. This well has a static water level of 12 meters. With these excellent results, we installed a stainless steel pump. Water quality test results showed that this was clean water fit for drinking!

New Knowledge

Before conducting any hygiene training, we called and visited the local water user committee to understand the community’s challenges and lack of sanitation facilities. We shared the findings from our discussions with the committee members to help them make the necessary adjustments before the training began. For example, we identified households without handwashing stations or ones that may need to repair their latrines. With this information, community members worked together to improve hygiene and sanitation at home.

After this preparatory period, we scheduled a time when members from each household using the water point could attend a three-day hygiene and sanitation training. We then dispatched our teams to the agreed-upon location to hold the meeting.

Training topics covered included handwashing and tippy taps, good and bad hygiene habits, disease transmission and prevention, COVID-19, worms and parasites, proper dental hygiene, proper care of the well's pump, keeping the water clean, the cost recovery system, the importance of using dish racks and clotheslines, the importance of toilets, keeping latrines clean, balanced diets, the diarrhea doll, and HIV and AIDS.

A participant demonstrates handwashing.

One memorable lesson was handwashing, during which we showed participants how to set up a handwashing station called a tippy tap. After the lesson, one community member named Abdul stood up to reinforce the importance of this lesson. He said he has seen how ignoring the importance of handwashing wiped out entire families during Sierra Leone's recent cholera outbreaks. His fellow participants clapped for him at the conclusion of this speech.

"This training is valuable to me due to the new knowledge I received," said trader Fatmata Kamara.

Fatmata.

"The training has helped me to be aware of certain things that I was careless of," Fatmata continued. "Before, I used to leave my food uncovered, and exposed my toothbrush to insects. I have not been washing my hands with soap and water after using the toilet, but now I have gained good knowledge on how to take care of myself. This training has helped me to know the importance of taking my child to the hospital for treatment when he/she is sick, and also the importance for pregnant women to go for antenatal care. I am so happy to witness these three training sessions as a wife and parent, for me to stop all the bad hygiene practices that I have been doing before, so I will be healthy, and I want to thank the team for saving our lives in this community."

Conclusion

This project required a substantial collaboration between our staff, our in-country teams, and the community members themselves. When an issue arises concerning the well, community members are equipped with the necessary skills to rectify the problem and ensure the water point works appropriately. However, if the issue is beyond their capabilities, they can contact their local field officers to assist them.

Also, we will continue to offer them unmatchable support as a part of our monitoring and maintenance program. We walk with each community, problem-solving together when they face challenges with functionality, seasonality, or water quality. Together, all these components help us strive for enduring access to reliable, clean, and safe water for this community.

With your contribution, one more piece has been added to a large puzzle of water projects. In our target areas, we’re working toward complete coverage of reliable, maintained water sources within a 30-minute round trip for each community, household, school, and health center. With this in mind, search through our upcoming projects to see which community you can help next!

Thank you for making all of this possible!




January, 2023: Mayonkoh Community New Well Underway!

A severe clean water shortage in Mayonkoh Community drains people’s time, energy, and health. Thanks to your generosity, we’re working to install a clean water point and much more.

Get to know this community through the introduction and pictures we’ve posted, and read about this water, sanitation, and hygiene project. We look forward to reaching out with more good news!




Project Photos


Project Type

Abundant water is often right under our feet! Beneath the Earth’s surface, rivers called aquifers flow through layers of sediment and rock, providing a constant supply of safe water. For borehole wells, we drill deep into the earth, allowing us to access this water which is naturally filtered and protected from sources of contamination at the surface level. First, we decide where to drill by surveying the area and determining where aquifers are likely to sit. To reach the underground water, our drill rigs plunge through meters (sometimes even hundreds of meters!) of soil, silt, rock, and more. Once the drill finds water, we build a well platform and attach a hand pump. If all goes as planned, the community is left with a safe, closed water source providing around five gallons of water per minute! Learn more here!


Mohamed has the tools to thrive!

April, 2024

Last year, your gift unlocked the potential for a brighter future for Mohamed. Since then, he and the Mayonkoh Community of 400 residents have had clean, reliable water. Thank you for making a difference!

Keeping The Water Promise

There's an incredible community of monthly donors who have come alongside you in supporting clean water in Mayonkoh Community.

This giving community supports ongoing sustainability programs that help Mayonkoh Community maintain access to safe, reliable water. Together, they keep The Water Promise.

We’re confident you'll love joining this world-changing group committed to sustainability!

"The well has helped me to achieve numerous goals, but the most important one is that I have been able to make cement bricks from the water I fetch from this point. It has also provided safe and pure drinking water for me and my family," Mohamed shared.

In March, 2023 your generosity helped put a well in the Mayonkoh Community!

Before the Spring's Protection

Mohamed, a 31-year-old farmer, lived in a community where basic necessities such as water were scarce. His family struggled every day to meet their most basic needs, such as bathing and having clean water to drink. The situation was not unique to Mohamed's family, as every household in the community faced the same challenge.

Mohamed was well acquainted with the incredible distance to any water source. For any water-related need, he would make the trek. It's hard to get ahead in life when every moment is stolen by collecting water.

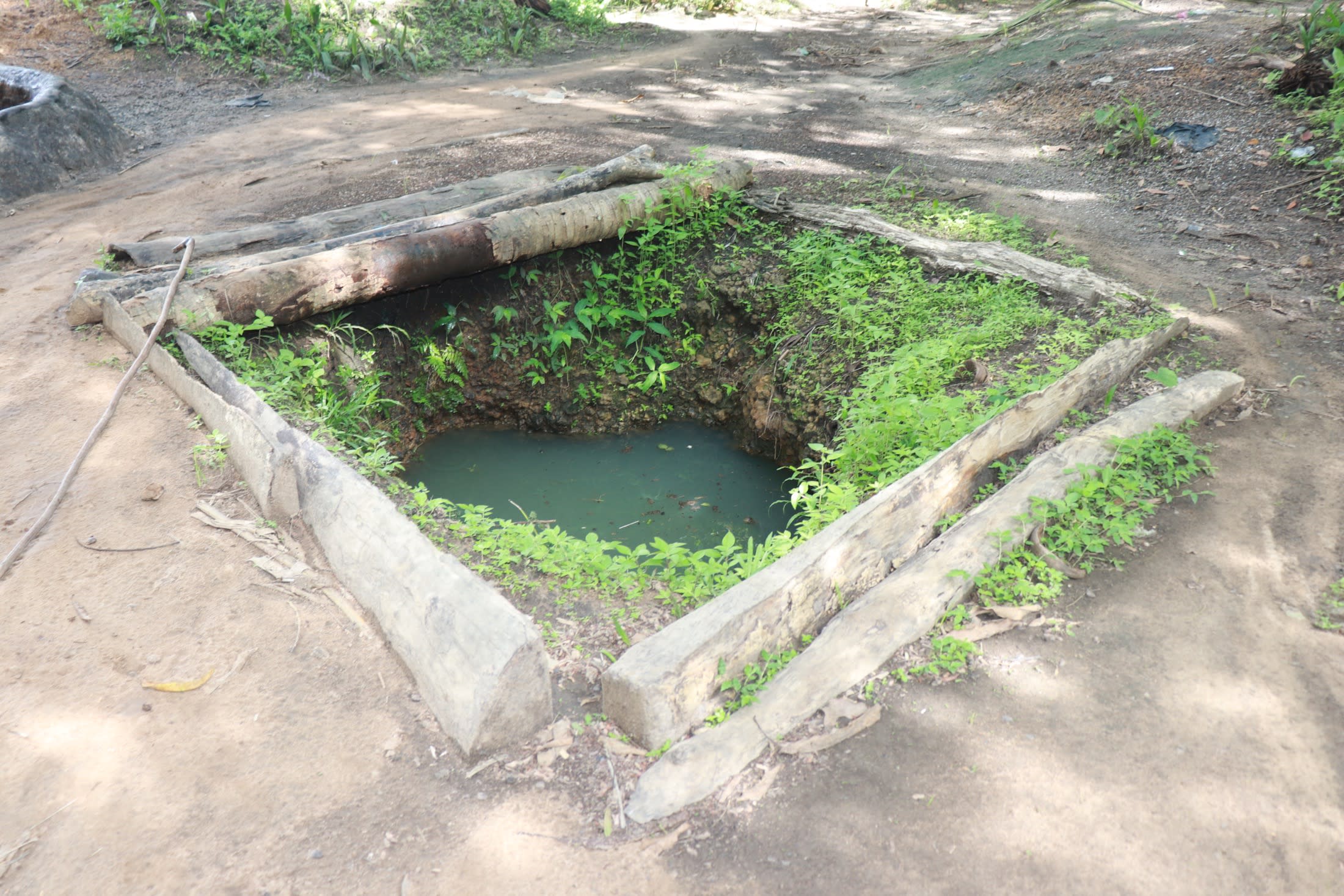

One alternate water source the community relied on before their well was installed.

"I normally went to the swamp far away from the village to fetch water. It was really tough to fetch water from this swamp before the implementation of this project. Every day, I go to the swamp to fetch water when I want to bathe and drink," shared Mohamed.

Since the Spring's Protection

Your generous gift was much more than a simple donation; it was a powerful statement about your commitment to this community and Mohamed's future. By supporting the installation of the well, you made clean water an everyday reality for him, fostering hope for a brighter future.

Reliable and clean water lays the groundwork for improved health, education, and economic possibilities, allowing people like Mohamed to thrive. We frequently hear from those we interview that "water is life!"

Mohamed performing ablution.

"Fetching water from this [well] is easy and time-saving. It is easy for me to fetch water as the well is close. This has impacted my life by providing safe and pure drinking water for me and my family," he continued.

Things changed for the better after the installation of the well, providing easy access to clean water. A development that brought relief to Mohamed's family and the entire community, improving their quality of life significantly.

Mohamed's Future is Looking Bright!

You made a difference for Mohamed and the rest of his community a year ago. This is just the first chapter of their story as access to clean water continues to improve their lives!

Bricks Mohamed made, thanks to access to clean water.

At The Water Project, we value sustainability and want to ensure that people like Mohammed continue to thrive. We commit to monitoring this well to ensure the water is always flowing and safe to consume. We inspect the system hardware, track water availability, conduct sanitary inspections, and collect water quality samples to identify risks. We work with our team on the ground to resolve them.

You gave Mohamed a crucial tool for achieving his dreams: access to clean water. Together, we can excitedly expect that with this precious resource, his enthusiasm and courage will help him fulfill his dreams.


Navigating through intense dry spells, performing preventative maintenance, conducting quality repairs when needed and continuing to assist community leaders to manage water points are all normal parts of keeping projects sustainable. The Water Promise community supports ongoing sustainability programs that help Mayonkoh Community maintain access to safe, reliable water.

We’d love for you to join this world-changing group committed to sustainability.

The most impactful way to continue your support of Mayonkoh Community – and hundreds of other places just like this – is by joining our community of monthly givers.

Your monthly giving will help provide clean water, every month... keeping The Water Promise.
