Project Status



Project Type:  Dug Well and Hand Pump

Regional Program: Southeastern Kenya WaSH Program

Impact: 500 Served

Project Phase:  Installed - Sep 2018

Functionality Status:  Functional

Project Features


Click icons to learn about each feature.



This is the second year we have worked with Katalwa Community and the Katalwa Jipe Moyo self-help group. One dam and one well were already constructed, giving people access to safe water for drinking and a source for irrigating their crops.

“Our first project has helped in bringing clean water close to our homesteads, the sufficient water supply and the concepts learned from hygiene training are helping us in maintaining relatively high standards of cleanliness in our homesteads,” Mrs. Kamene Muthwii said.

However, many people still must walk more than a mile each way to access the new wells and benefit from the dams. Furthermore, a single well is not enough to supply clean water for the more than 2,000 people in this community. So we plan to construct another well and dam to ensure that everyone has safe water nearby.

This self-help group works with us as a part of a five-year development program. They were trained during the construction of their first successful sand dam, and have grown immensely since then.

The efforts are working. Nearly half of households in the community now have pit latrines. Due to the availability of water provided by their first sand dam, the members are keen on their sanitation as they wash their toilets frequently. In both the homesteads that we visited they have water tanks in their compounds which provide sufficient water for cleanliness.

Nearly all homes adopted other sanitation facilities, such as handwashing stations, dish racks, animal pens and more. There is still work to be done in terms of using garbage pits.

On an average day for the community members, the women and children wake up at 6am. The women usually go fetch water and prepare breakfast for the family as the children prepare for school.

The men wake up to go to the farm to get grass for the livestock and also prepare to run his errands, such as tending to the farm, taking farm products to the market, feeding the livestock, and more.

During the day, the women wash the family’s clothes, tidy up the house, wash utensils, and prepare lunch as well as supper for the family. They also have the community meetings which they attend during the day.

The group needs this water because they have an urge to develop their area by planting more trees and more food crops. It will also reduce the distance they have been walking to fetch water thus saving them more time to engage in other income generating tasks.

What we plan to do about it:

Our main entry point into Katalwa Community has been the Katalwa Jipe Moyo Self-Help Group, which is comprised of farming households that are working together to address water and food scarcity in their region. These members will be our hands in feet in both constructing water projects and spreading the message of good hygiene and sanitation to everyone.

Training

We’re going to continue training the self-help group members and their communities on hygiene and sanitation practices. Though our visits to households were encouraging, we want to ensure that community members are practicing the day to day habits we are not able to observe. Food hygiene, water hygiene and treatment, personal hygiene and handwashing will all be a focus during our next review.

Hand-Dug Well

This particular hand-dug well is being built adjacent to this group’s ongoing sand dam project (click here to see), which will supply clean drinking water once it rains. We have supplied the group with the tools needed for excavation. With the guidance of our artisans and mechanics, the excavated well will be cased, sealed with a well pad, and then finished with a new AfriDev pump.

Excavation takes a month or more on average, depending on the nature of the rock beneath. Construction of the well lining and installation of the pump takes 12 days maximum. The well will be lined with a concrete wall including perforations so that once it rains, water will filter in from the sand dam.

This well will be located in Katalwa Village and will bring clean water closer to families having to walk long distances for their water.


This project is a part of our shared program with Africa Sand Dam Foundation. Our team is pleased to provide the reports for this project (edited for clarity) thanks to the hard work of our friends in Kenya.

Project Updates


09/25/2018: Katalwa Community Hand-Dug Well Construction Complete

Katalwa Community, Kenya now has a new water source thanks to your donation. A hand-dug well was constructed adjacent to a sand dam. Once it rains, the dam will build up sand that raises the water table and naturally filters water available at the well. Community members also attended hygiene and sanitation training, and plan to share what they learned with their families and neighbors.

New Knowledge

Hygiene and sanitation training was planned and organized by the Area Field Officer, Paul Musau, who communicated with the Katalwa Jipe Moyo Self-Help Group members and settled on a date when Instructor Christine Lucas could conduct sessions. Christine planned training content by making household visits and conducting interviews to learn how this community needs to develop.

The attendance was good, with all community group members present. Though Katalwa Jipe Moyo is mainly a women’s group, some men showed up and were welcomed. On the second day, the area chief joined the group for training. The group members were very happy to see him supporting and participating in their development projects. Training took place at group member Mary Kitheka’s homestead, which was central to everyone.

Christine Lucas started the training with introductions and prayer. She used several different types of activities to draw everyone in, such as demonstrations, brainstorming sessions, and group discussions.

A group discussion about problems affecting Katalwa Community.

Some of the highlighted topics were but not limited to seasonal health issues, good and bad daily habits, how diseases spread and how to prevent them, handwashing, and soap-making. In the final session, group members worked with Christine to develop an action plan to see this new knowledge put into practice.

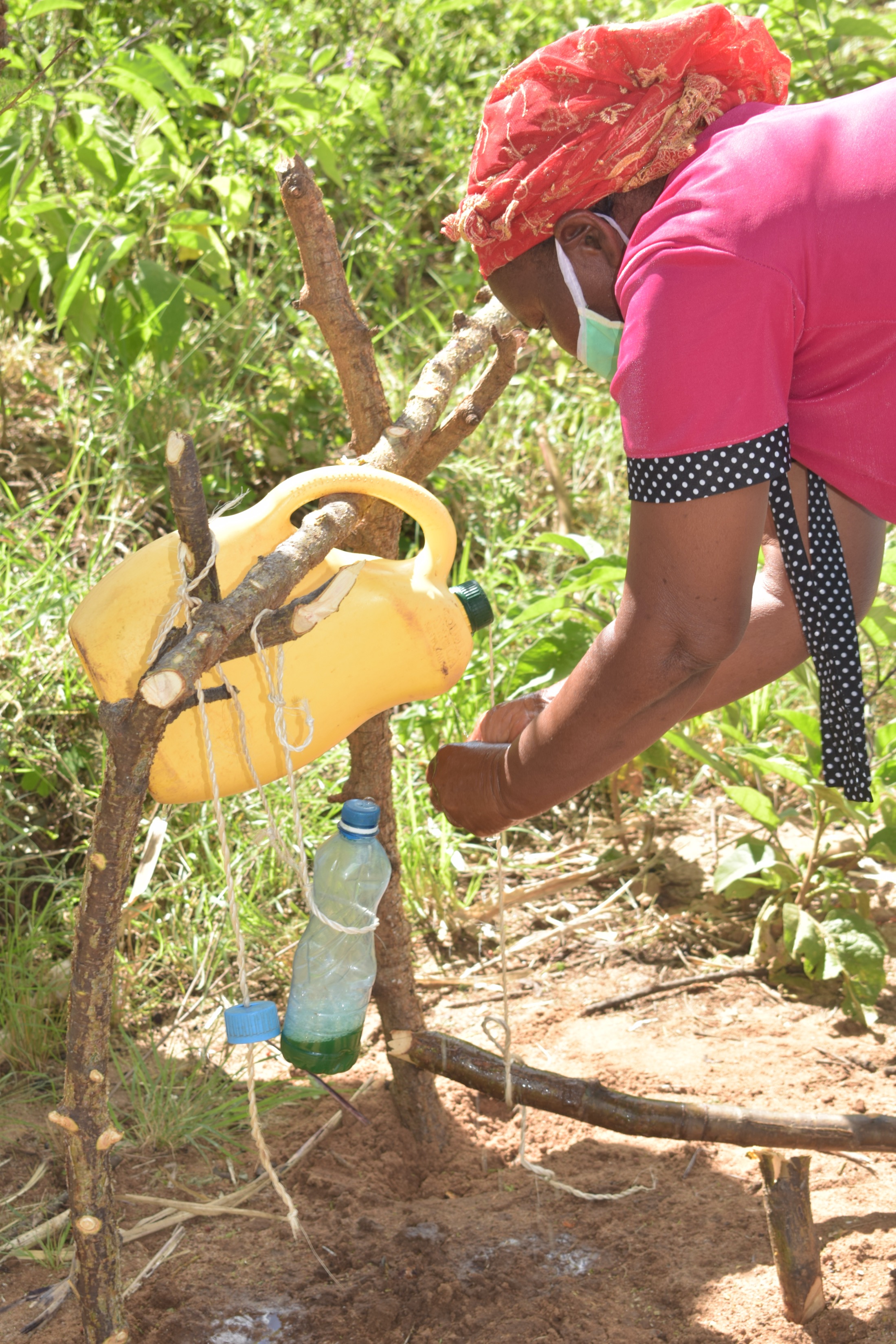

Several women reviewing the steps of handwashing using a tool called the “tippy tap.”

The women really enjoyed the review on soap-making. They had learned the recipe in an earlier training and loved sharing their experiences over the past year. Some had said they made early mistakes when trying to produce and sell soap; some tried to dilute the recipe to save money but found it would really mess things up. Women admitted that once they learned that this way is the only right way, their soap’s high quality brought in more customers.

The seasonal calendar helped women identify common problems in their community. The members were divided into two groups and wrote down the common diseases they suffer from and when. After the group discussion, the members met in one group for presentations. Typhoid was identified as one of the most common issues, so Christine took the group through ways to prevent typhoid.

“The training was interesting, we have learned a lot. We will prevent diseases using the knowledge that we learned today. We will train our families and our communities about what we learned,” said Mrs. Mwende Musyoka.

Mrs. Mwende Musyoka

“…Again, the soap sales have really helped us. Personally, I have been able to pay school fees for my children from the profit generated from the soap sales. Houseflies have reduced in our homes, and we are very grateful.”

Hand-Dug Well

We delivered the experts and materials, but the community helped get an extraordinary amount of work done. They collected local materials to supplement the project, including sand and water.

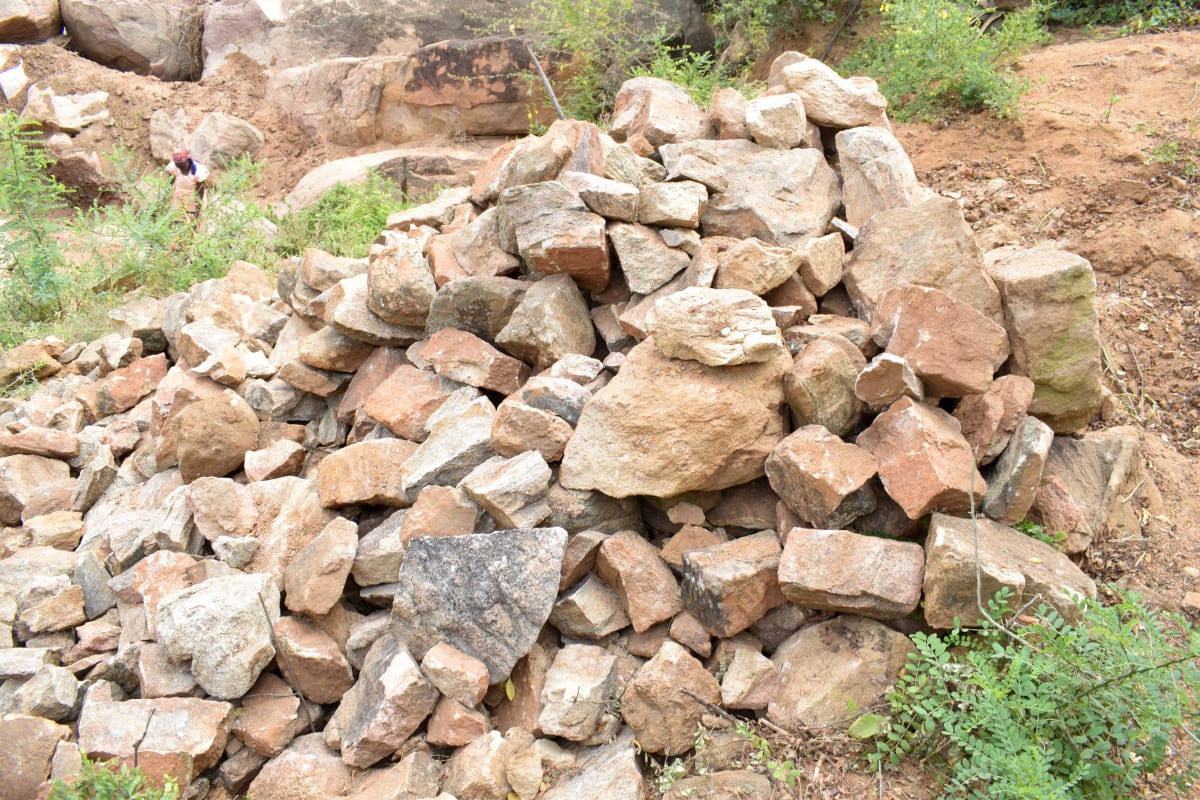

Stones collected for use in the sand dam wall and the shallow well lining.

Process:

A hole seven feet in diameter is excavated up to a recommended depth of 25 feet. (Most hand-dug wells don’t reach that depth due to the existence of hard rocks between 10-18 ft.). The diameter then shrinks to five feet when construction of the hand-dug well lining is completed. This lining is made of brick and mortar with perforations to allow for water to seep through.

Once the construction of the lining reaches ground level, a precast concrete slab is laid on top and joined to the wall using mortar. Four bolts for the hand-pump are fixed on the slab during casting. The concrete needs to dry over the course of two weeks before the pump is installed.

The mechanics arrive to install the pump as community members watch, learning how to manage simple maintenance tasks for themselves.

The well is then given another few days after installing the pump to allow the joints to completely dry.

The pump was installed level with the top of the sand dam (click here to check it out) because as the dam matures, sand will amass until it reaches the top of the platform. Once it rains, this sand behind the dam wall will store the water to be accessed through this hand-dug well. We look forward to reaching out again when we have news of water here.

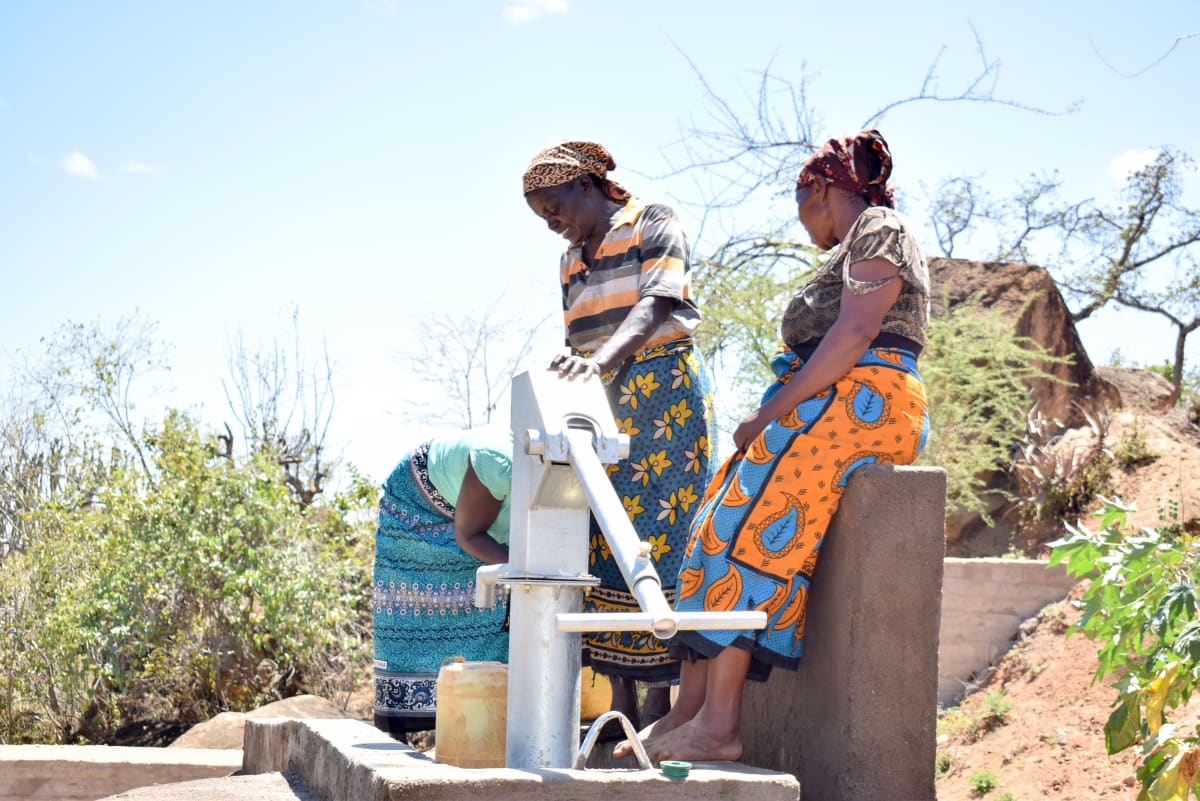

Three women proudly stand at the well they helped build. They are excited to have a water supply here soon, thanks to the adjacent sand dam!

“We are very happy to have completed this amazing water project,” said Mary Kitehka.

“Our efforts to end the water problems in our area are bearing fruits with this kind of project being completed. This is our second dam and shallow well and the whole village is bursting with joy at the prospect of having an adequate supply of clean water from within the village,” Mary continued.

“We thank God for taking us through the whole construction process safely and we look forward to working on more projects in our locality”


The Water Project : 18-kenya18221-finished-well


07/19/2018: Katalwa Community Hand-Dug Well Underway

A severe clean water shortage persists in Katalwa Community, draining people’s time, energy, and health. Thanks to your generosity, we’re working to install a clean water point and much more.

Get to know your community through the introduction and pictures we’ve posted, and read about this water, sanitation and hygiene project. We look forward to reaching out with more good news!


The Water Project : kenya18221-hoisting-water-to-carry-home


Project Photos


Project Type

Dug Well and Hand Pump

Hand-dug wells are best suited for clay, sand, gravel and mixed soil ground formations. A large diameter well is dug by hand, and then lined with either bricks or concrete to prevent contamination and collapse of the well. Once a water table is hit, the well is capped and a hand-pump is installed – creating a complete and enclosed water system.
