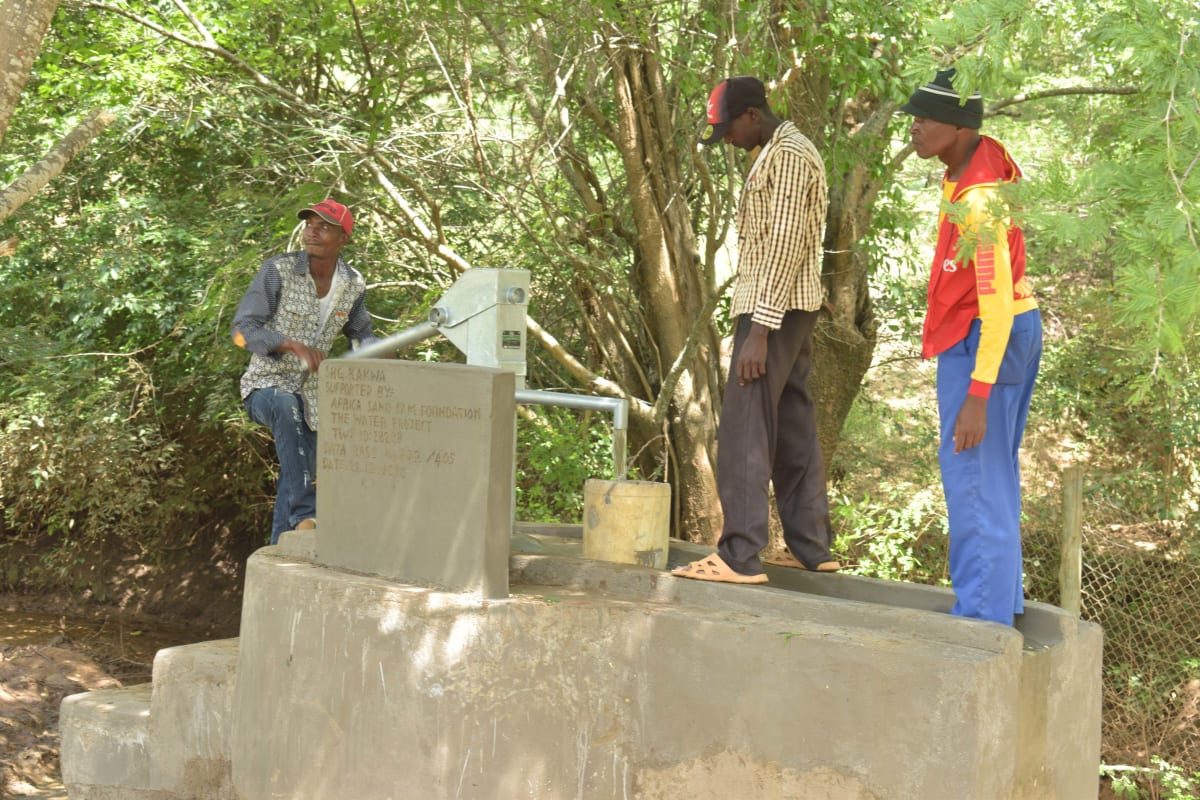

The Water Project: Kithumba Community C -  Flowing Water
The Water Project: Kithumba Community C -  Flowing Water
The Water Project: Kithumba Community C -  Flowing Water
The Water Project: Kithumba Community C -  Flowing Water
The Water Project: Kithumba Community C -  Finished Well
The Water Project: Kithumba Community C -  Well Progress
The Water Project: Kithumba Community C -  Well Progress
The Water Project: Kithumba Community C -  Materials We Delivered

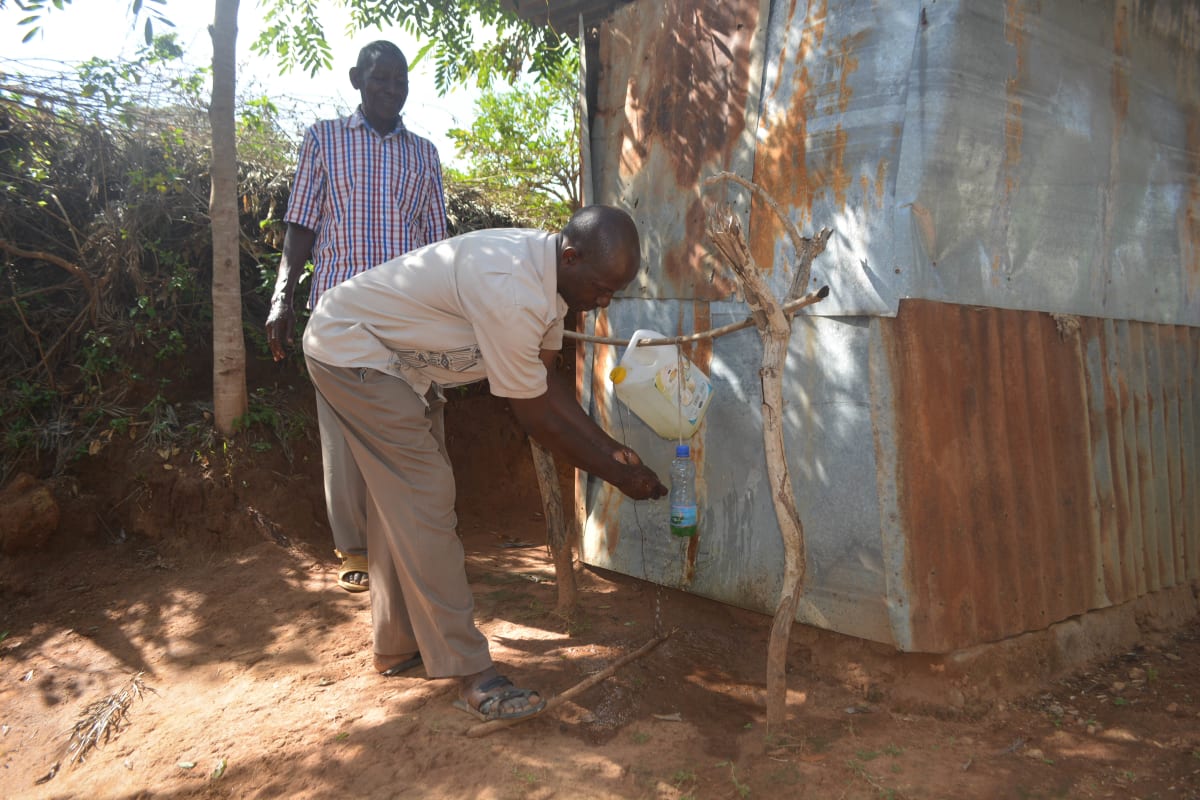

The Water Project: Kithumba Community C -  Handwashing Training
The Water Project: Kithumba Community C -  Training
The Water Project: Kithumba Community C -  Training
The Water Project: Kithumba Community C -  Training
The Water Project: Kithumba Community C -  Training
The Water Project: Kithumba Community C -  Water Storage Containers
The Water Project: Kithumba Community C -  Latrine
The Water Project: Kithumba Community C -  Jane Mutuku
The Water Project: Kithumba Community C -  Dishes
The Water Project: Kithumba Community C -  Kitchen
The Water Project: Kithumba Community C -  Clothesline
The Water Project: Kithumba Community C -  Compound
The Water Project: Kithumba Community C -  Carrying Water Home
The Water Project: Kithumba Community C -  Using Community Well

Project Status



Project Type:  Dug Well and Hand Pump

Regional Program: Southeastern Kenya WaSH Program

Impact: 500 Served

Project Phase:  In Service - Feb 2019

Functionality Status:  Low/No Water or Mechanical Breakdown

Last Checkup: 07/20/2019

Project Features


Click icons to learn about each feature.



This is the second year we have worked with Kithumba Community and the Kakwa Self-Help Group. One dam and one well were constructed last year, giving people access to safe water for drinking and a source for irrigating their crops.

Universal access to water by all community members remains a challenge in this locality with some members coming from far areas from the already implemented water projects. So, we plan to construct another well and dam to ensure that everyone has safe water nearby.

“The benefits of our first dam and well are visible, now we are getting water close to our homes and we are improving in terms of our hygiene and sanitation practices,” Mr. Richard Muange said.

“We still need more water in the village as there still gaps in water access, We hope to keep on improving as we implement more projects.”

Go here to view previous projects in the community and see their progress over the past few years.

This self-help group is in the second year of our five-year development program. They were trained during the construction of their first successful sand dam and well, and have grown immensely since then. The community members exhibit high levels of commitment to ensure easy access to water by all the community population through implementation of more water projects to reach every corner of the village.

Kithumba is generally hilly with steep slopes, found on a peaceful vegetated rural area where the majority of the houses are grass thatched. Most people here are actively involved in large-scale fruit farming in their pieces of land especially mangoes and oranges, the increased production of fruits in the area resulted to the Makueni county government installing a fruit processing plant at the nearby Kalamba Market to tap on produce from the locals.

The community’s proximity to Matiliku Market center has led to many people attending market days every Wednesday. Locals walk together to the market in a bid to maximize on the increased variety of choice and fresh produce.

What we plan to do about it:

Our main entry point into Kithumba Community has been the Kakwa Self-Help Group, which is comprised of farming households that are working together to address water and food scarcity in their region. These members will be our hands and feet in both constructing water projects and spreading the message of good hygiene and sanitation to everyone.

Training

We’re going to train the self-help group members and their communities on hygiene and sanitation practices. The majority of households have a place for people to use the bathroom, but there are still some families who are sharing with their neighbor. The majority of latrines we were able to visit were in poor condition. Other facilities were even more uncommon; there were not many clotheslines, dish racks, or pens for animals.

We also look forward to teaching about important daily practices that will make people healthy and happy. Having good facilities is only the first step! Handwashing and water treatment will have their own sessions.

Hand-Dug Well

This particular hand-dug well is being built adjacent to this group’s ongoing sand dam project (click here to see), which will supply clean drinking water once it rains. We have supplied the group with the tools needed for excavation. With the guidance of our artisans and mechanics, the excavated well will be cased, sealed with a well pad, and then finished with a new AfriDev pump.

Excavation takes a month or more on average, depending on the nature of the rock beneath. Construction of the well lining and installation of the pump takes 12 days maximum. The well will be lined with a concrete wall including perforations so that once it rains, water will filter in from the sand dam.

This well will be located in Kithumba Village and will bring clean water closer to families having to walk long distances for their water.

Project Updates


02/26/2019: Kithumba Community Hand-Dug Well Complete

Kithumba Community, Kenya now has a new water source thanks to your donation. A hand-dug well was constructed adjacent to a sand dam. Once it rains, the dam will build up sand that both stores and naturally filters water available at the hand-dug well. Community members also attended hygiene and sanitation training, and plan to share what they learned with their families and neighbors.

Hand-Dug Well

“This project is a big boost to the water challenges in our village,” said Mrs. Kavinya.

“It will bring water close to our homesteads, thus reducing the distances covered in search of the valuable commodity. We are happy to have completed the project and for seeing the work of our hands yielding fruits in getting water. We will use the available water resources to improve on our agriculture and also cleanliness standards at the household levels.”

The Process:

We delivered the experts and materials, but the community helped get an extraordinary amount of work done. They collected local materials to supplement the project, including sand, stones, and water.

We delivered the cement that was used to line the well and build the platform.

A seven feet in diameter hole is excavated up to a recommended depth of 25 feet. (Most hand-dug wells don’t reach that depth due to the existence of hard rocks between 10-18 ft.). The diameter then shrinks to five feet when construction of the hand-dug well lining is completed. This lining is made of brick and mortar with perforations to allow for water to seep through.

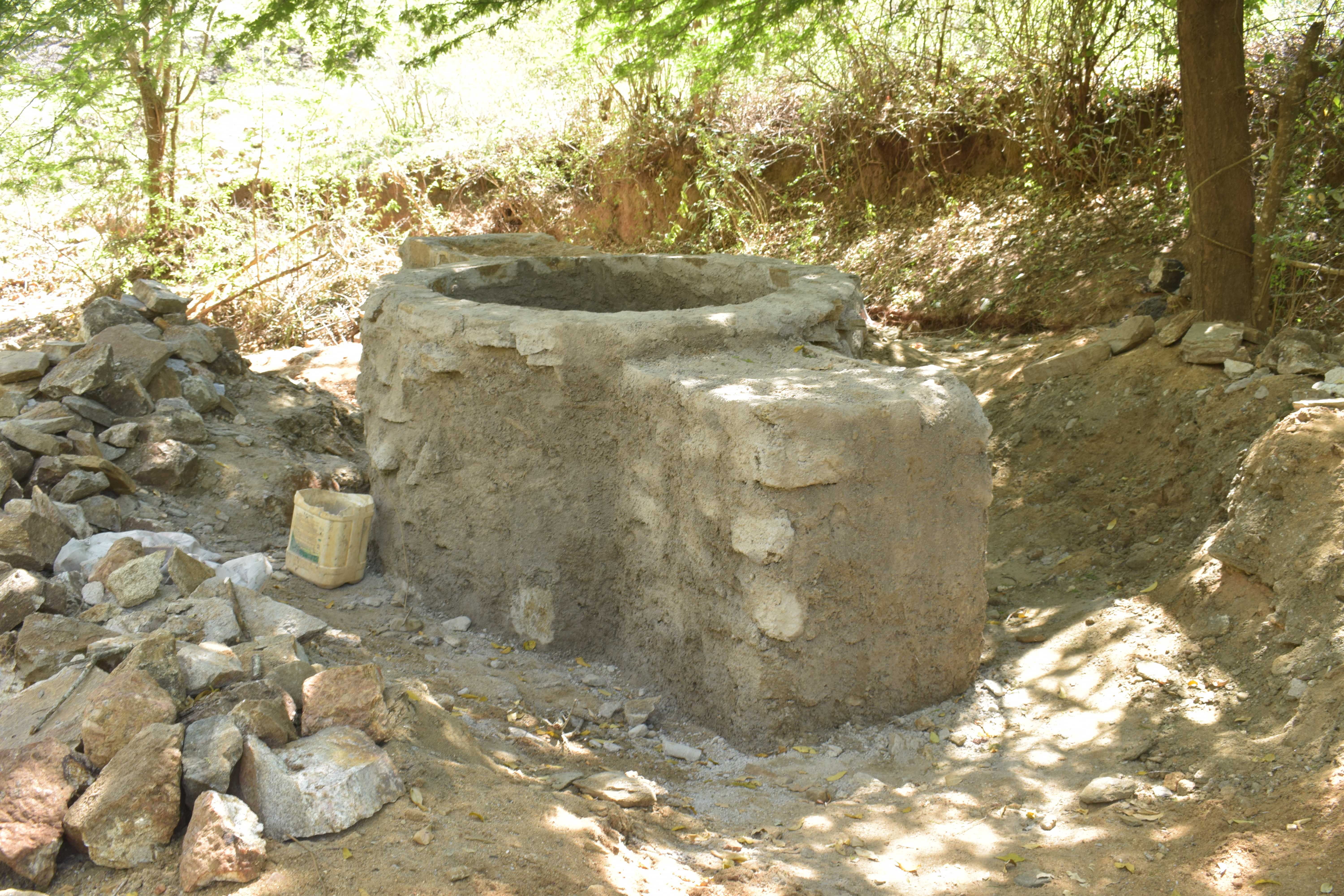

Progress on the well lining and platform

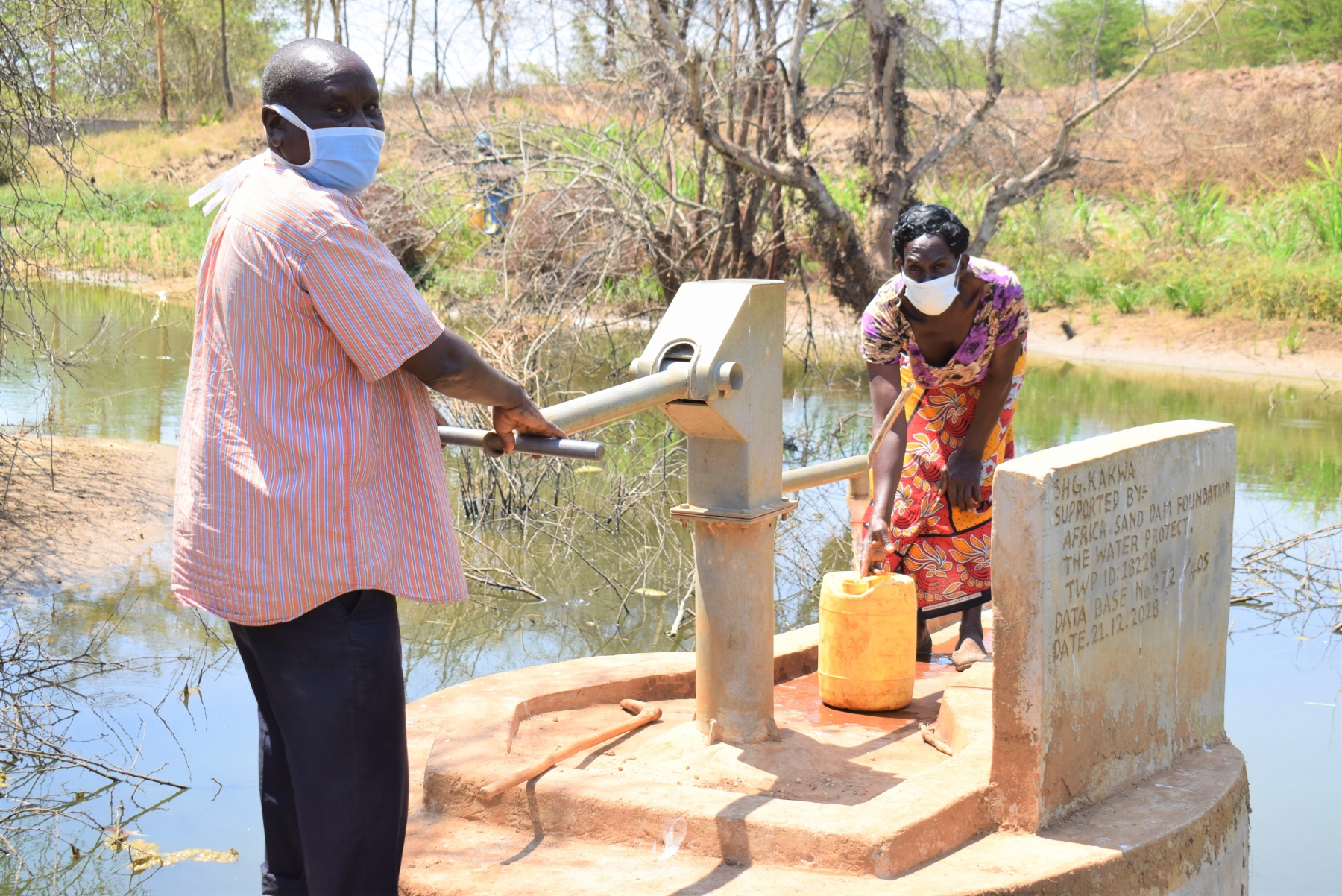

Once the construction of the lining is level with the top of the dam, a precast concrete slab is built on top and joined to the wall using mortar. Four bolts for the hand-pump are fixed on the slab during casting. The concrete needs to dry over the course of two weeks before the pump is installed.

The mechanics arrive to install the pump as community members watch, learning how to manage simple maintenance tasks for themselves.

The well is then given another few days after installing the pump to allow the joints to completely dry.

The pump was installed level with the top of the sand dam because as the dam matures, sand will amass until it reaches the top of the platform. Once it rains, this sand behind the dam wall will store the water to be accessed through this hand-dug well.

In fact, the sand dam has already stored water that’s currently being enjoyed by the community!

Training Review and New Knowledge

Matiliku region field officer Jeff Maluki mobilized community members to attend the training. All community members were invited and the date shared in time for the trainers to prepare. The weather ended up being cold and rainy. The homestead we met at luckily had a shelter that provided enough cover for the participants.

Participants asked us to review water treatment, latrine hygiene, handwashing, and soap-making.

We took them through various methods of treating drinking water. They were also taken through how water contamination can be prevented at each point in the water chain.

The participants also brought some materials so that we could review soap-making with them. They provided water, a big basin, and a stirring rod. We provided the soap-making ingredients – enough to make 60 liters of soap.

Mixing soap

Everyone was interested in learning the whole process and they were patient until the final product was obtained. The group took turns stirring the liquid soap. The participants pointed out that the soap is high quality compared to what is currently on the market, and that the whole process is simple and easy to follow.

“The training was good and I have learned a lot,” said Mr. Muinde.

“I have learned about water treatment methods and this will help me to prevent waterborne diseases. The soap-making training will enable me to improve hygiene and sanitation at home since the soap is of good quality and affordable.”

Thank you for making all of this possible!


The Water Project : 9-kenya18228-flowing-water


01/10/2019: Kithumba Community Hand-Dug Well Project Underway

Severe water shortage affects hundreds of people living in Kithumba Community, Kenya. Thanks to your generosity, we are bringing a water point to hundreds of people who walk miles for water.

Get to know this community through the narrative and pictures we’ve posted, and read about this water, sanitation and hygiene project. We look forward to reaching out with more good news!


The Water Project : kenya18228-carrying-water-home


Project Photos


Project Type

Dug Well and Hand Pump

Hand-dug wells are best suited for clay, sand, gravel and mixed soil ground formations. A large diameter well is dug by hand, and then lined with either bricks or concrete to prevent contamination and collapse of the well. Once a water table is hit, the well is capped and a hand-pump is installed – creating a complete and enclosed water system.
