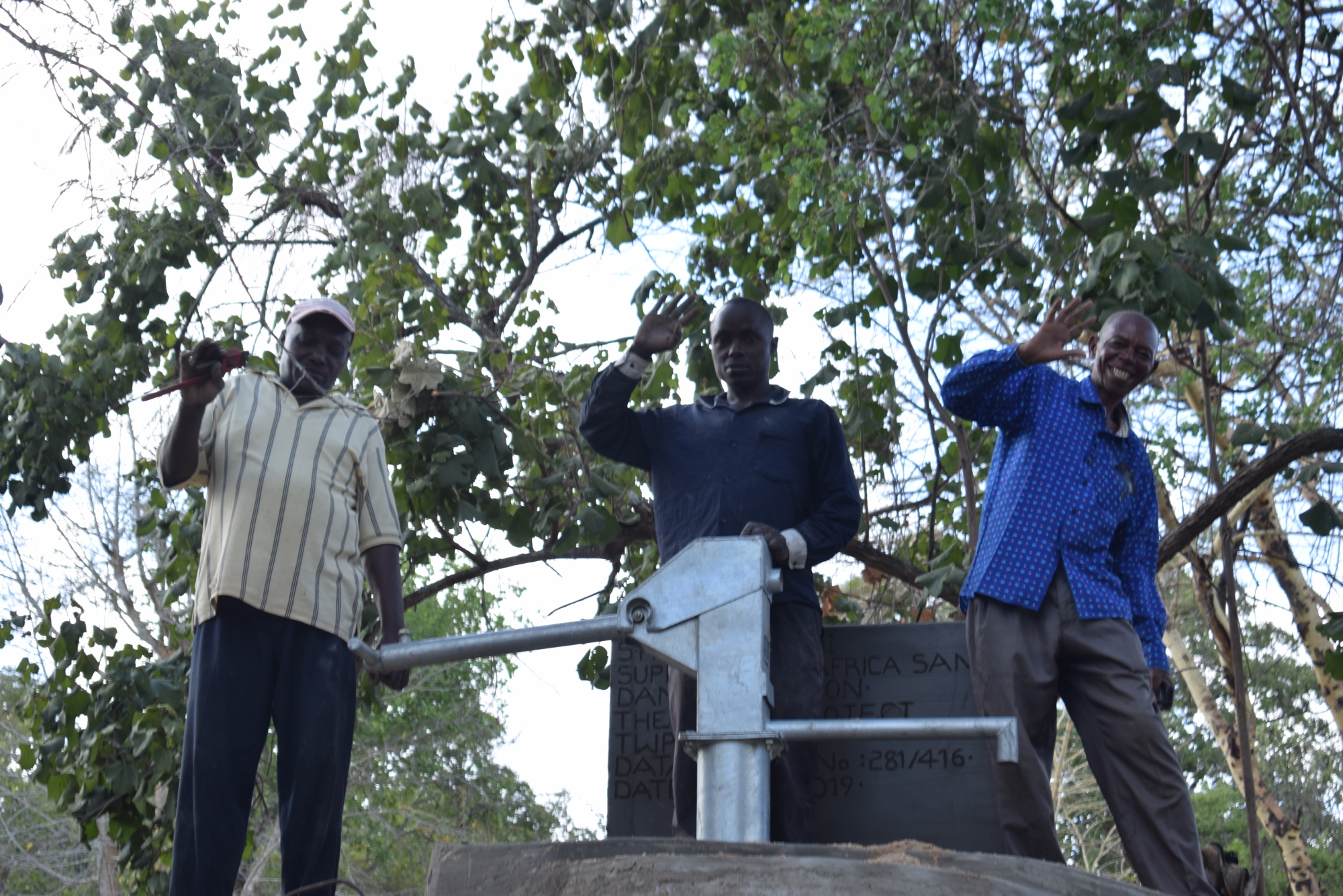

The Water Project: Mbau Community C -  Celebrating New Well

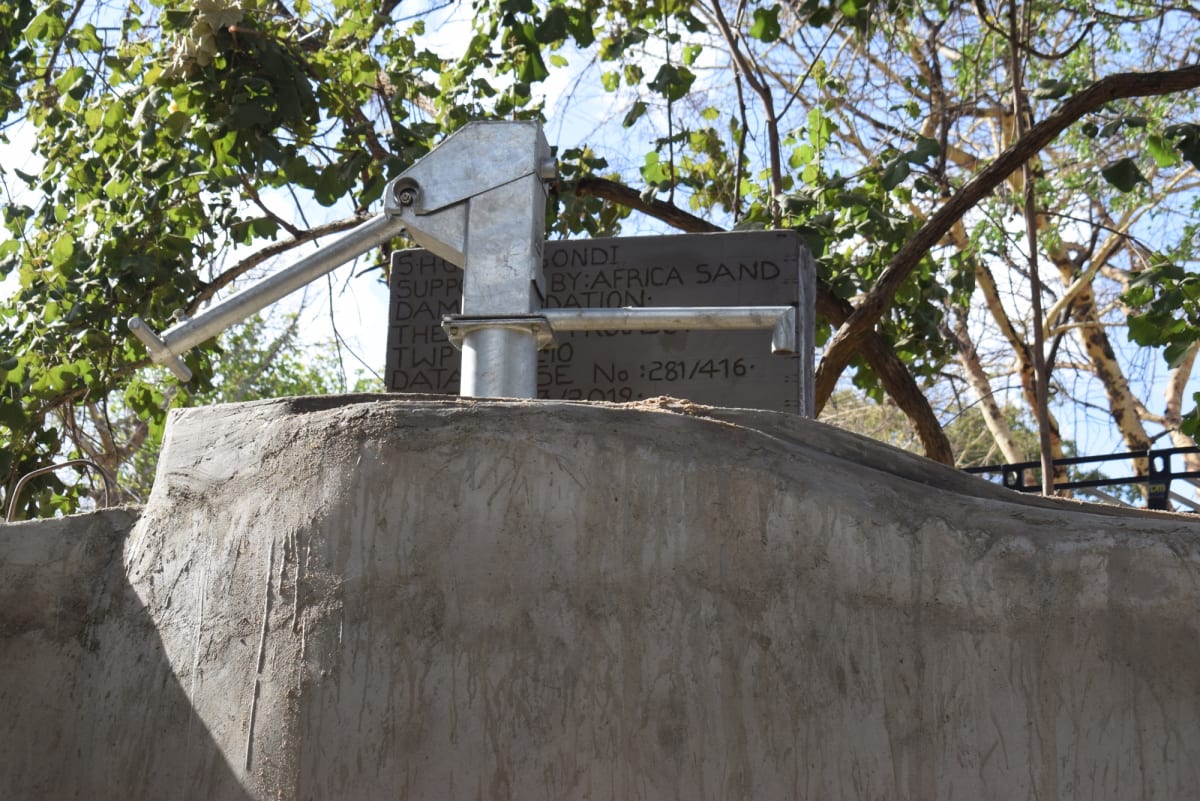

The Water Project: Mbau Community C -  Complete Well
The Water Project: Mbau Community C -  Building Well Walls
The Water Project: Mbau Community C -  Well Nearly Done
The Water Project: Mbau Community C -  Construction Site

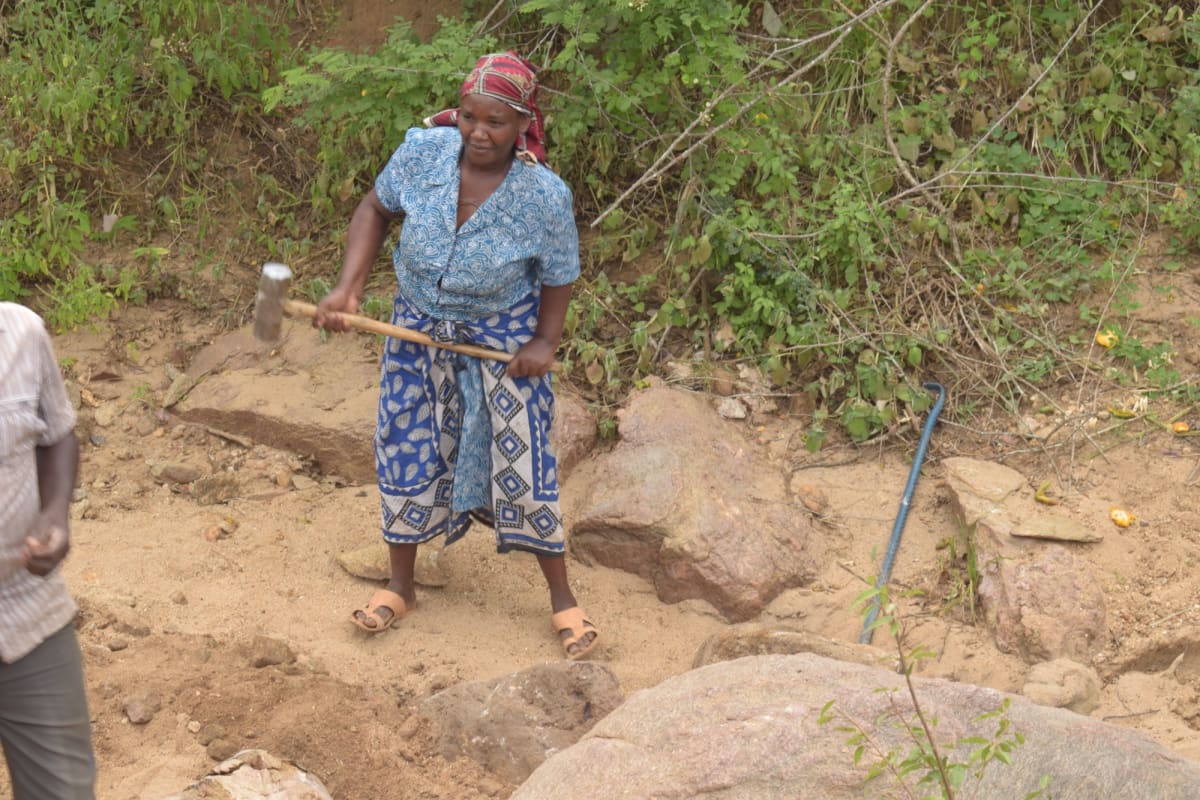

The Water Project: Mbau Community C -  Construction
The Water Project: Mbau Community C -  Hauling Bag Of Cement

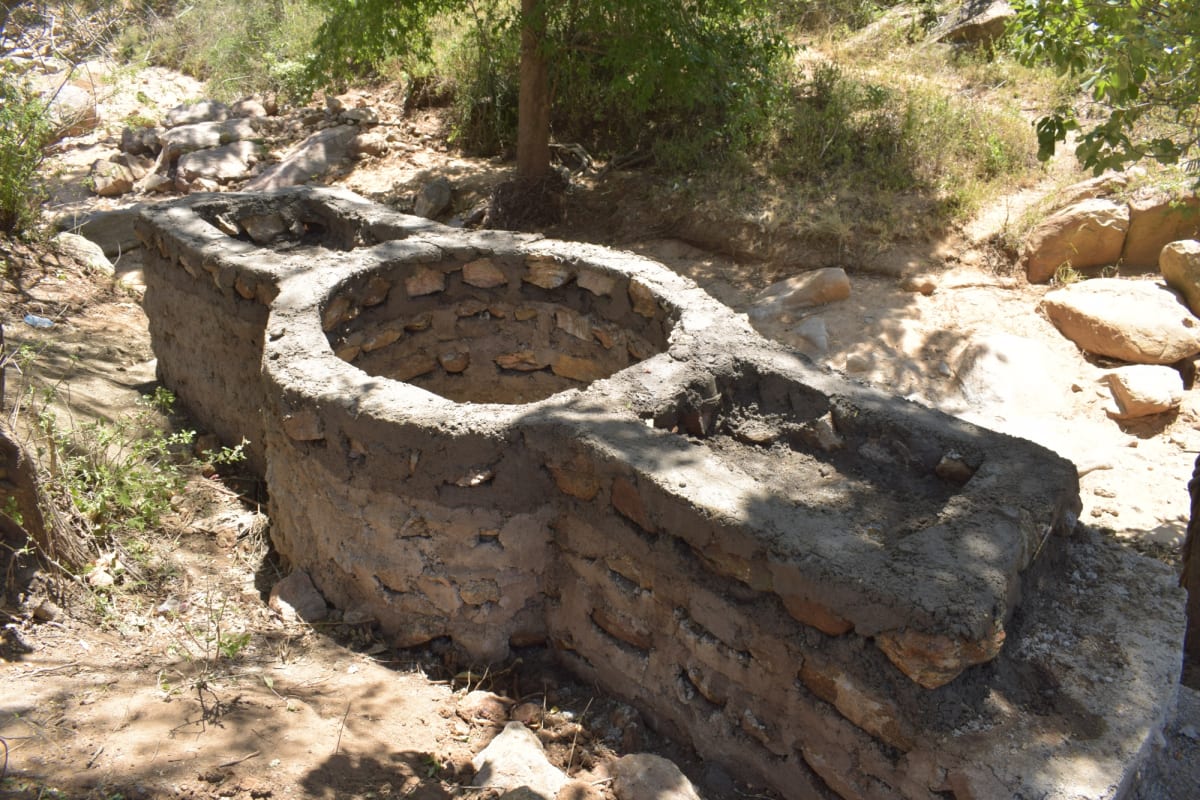

The Water Project: Mbau Community C -  Well Construction Progress

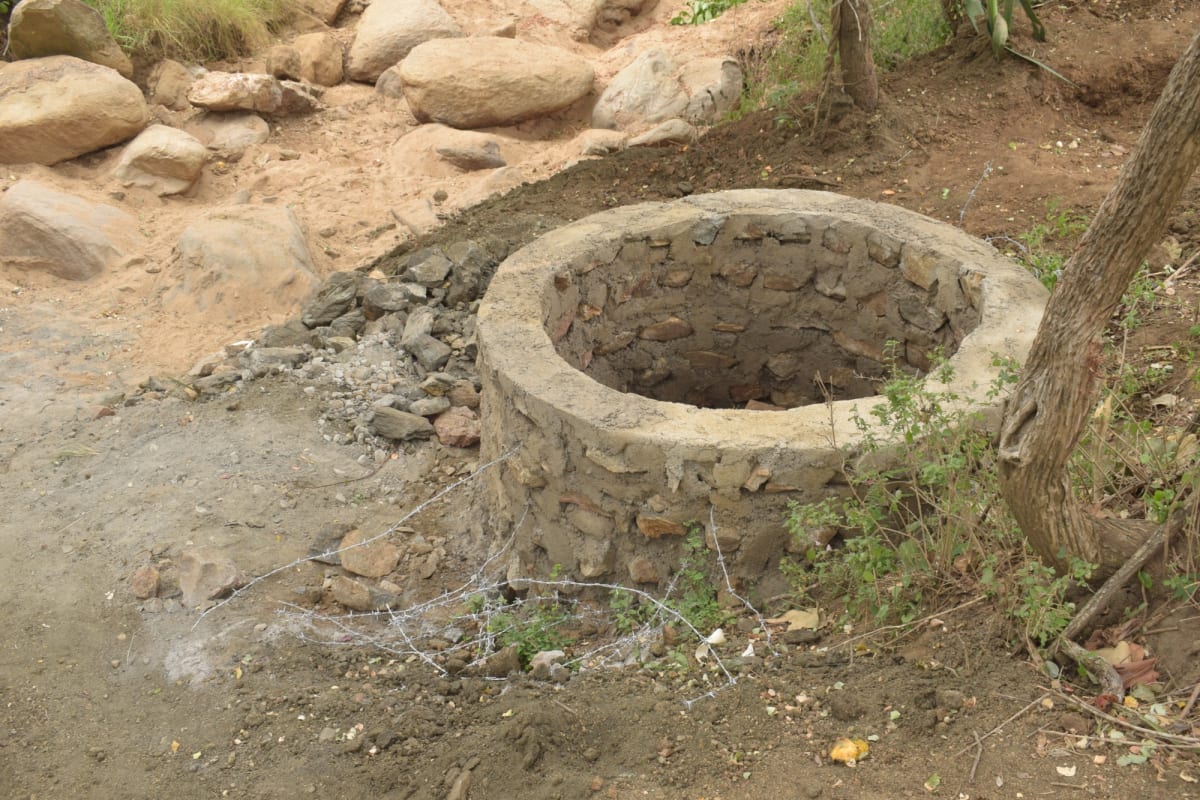

The Water Project: Mbau Community C -  Well Construction Underway
The Water Project: Mbau Community C -  Beginning Of Well Construction

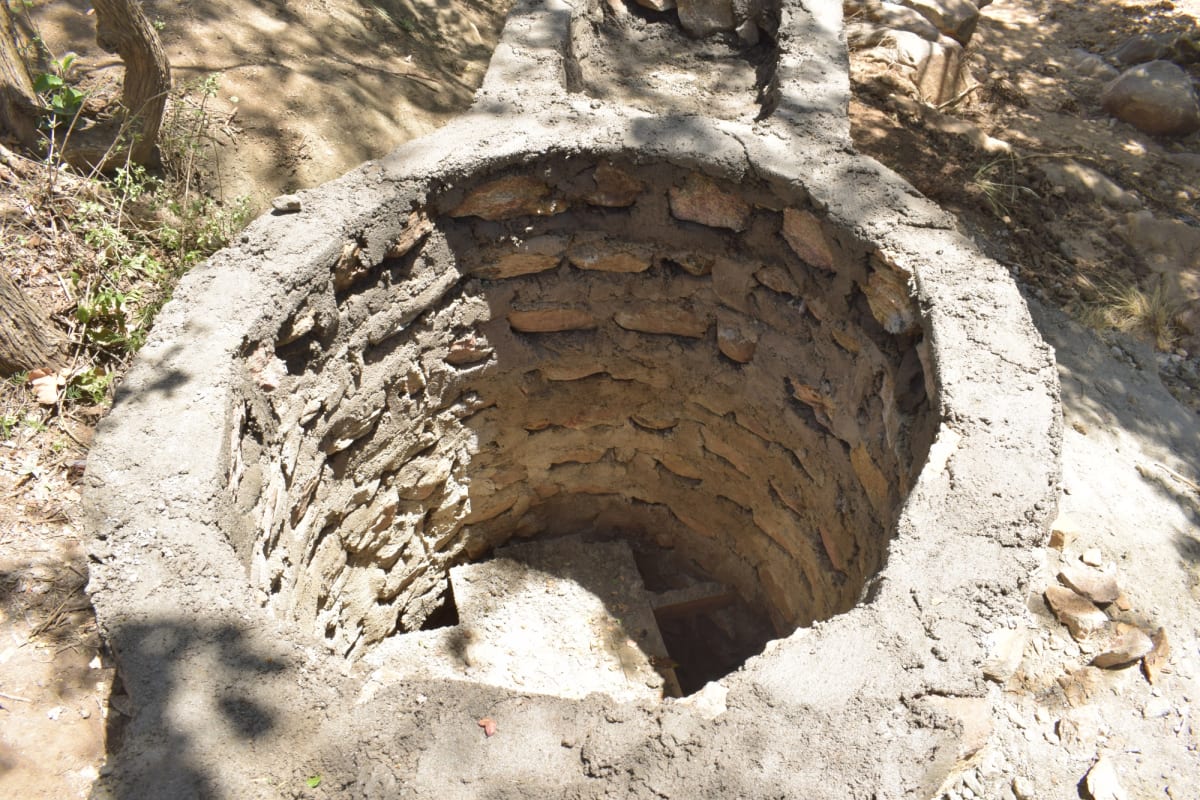

The Water Project: Mbau Community C -  Inside Well
The Water Project: Mbau Community C -  Working On The Well
The Water Project: Mbau Community C -  Shoveling Sand That Is Used To Mix With Cement
The Water Project: Mbau Community C -  Mixing Sand And Cement
The Water Project: Mbau Community C -  Mutheki Muthengei
The Water Project: Mbau Community C -  Day Training Materials
The Water Project: Mbau Community C -  Handwashing Exercise
The Water Project: Mbau Community C -  People Participating In The First Day Of Training
The Water Project: Mbau Community C -  Listening To Training Facilitator
The Water Project: Mbau Community C -  Day Of The Training
The Water Project: Mbau Community C -  Tippy Tap Construction
The Water Project: Mbau Community C -  Training Materials
The Water Project: Mbau Community C -  Training On Tippy Tap
The Water Project: Mbau Community C -  Training
The Water Project: Mbau Community C -  Asking Questions About Tippy Tap
The Water Project: Mbau Community C -  Water Containers
The Water Project: Mbau Community C -  Katethya Mutheke
The Water Project: Mbau Community C -  Community Members Gathering Stones For More Water Points
The Water Project: Mbau Community C -  Community Members Gathering Stones For More Water Points
The Water Project: Mbau Community C -  Community Members Gathering Stones For More Water Points
The Water Project: Mbau Community C -  Walking Home With Water
The Water Project: Mbau Community C -  First Well System

Project Status



Project Type:  Dug Well and Hand Pump

Regional Program: Southeastern Kenya WaSH Program

Impact: 500 Served

Project Phase:  In Service - May 2019

Functionality Status:  Functional

Project Features


Click icons to learn about each feature.



To address water scarcity in arid Southeastern Kenya, we build sand dam and hand-dug well systems to bring water closer to families. Since each community is so expansive, we implement multiple systems over the course of five years to provide enough nearby water for everyone. This is our second year working in Mbau Community, which is home to 1,056 people.

The sand dam and well system constructed last year is now the main water source for everyone living in Mbau. However, hundreds of people still walk a long way to get there. The distance covered varies from household to household, so implementing more projects at different points within the community will help shorten the distance for many more families.

A dam and well can comfortably support 500 people. And since 1,056 people are relying on this one water source, it is often overused and overcrowded.

“Our first water project facility has been very successful in its provision of water. However, it has not been close to all of us in equal measure – exposing others to the water struggles of long distances and the fatigue involved in water collection,” reflected Mrs. Katethya Mutheke.

“We are ready to work on more projects spread across the village so as to reach everyone and address the water challenges facing community members.”

As soon as the community members heard that they have a chance to benefit from another sand dam and well system this year, they immediately started collecting the stones we’d need to start building.

Welcome to the Community

Mbau Community is found in a peaceful, rural area with a significant amount of trees. Among the trees are local homes made of bricks and covered with iron sheets. Other families live in traditional mud huts with grass-thatched roofs.

The average household has five members. The typical male leader in the home has a primary school education. In families where the adults make a decent income, they will hire help in looking after their children. Traditionally, the man is the head of the house and provides for the family. This is however only practical in larger cities. Most men living in rural areas abandon their economic frustrations to heavy drinking, abandoning their families to be taken care of by their wives.

The majority of adults have informal employment like casual labor at Migwani Market and Mwingi Town. Other community members are involved in subsistence farming at their own farms. However, their success depends on the natural rainfall. Most often, rain is too sparse and yields a very small crop.

What we can do:

Our main entry point into Mbau Community has been the Yangondi Self-Help Group, which is comprised of 44 farming households that are working together to address water and food scarcity in their region. These members will be our hands and feet in both constructing water projects and spreading the message of good hygiene and sanitation to everyone.

Training

Yangondi Self-Help Group and Mbau Community have participated in training sessions that teach about important hygiene practices and daily habits to establish in their homes. Taking good care of themselves and their environment will make for a healthy community. There has been progress, but training is still necessary to ensure continued improvement.

Current Sanitation Facility Coverage:

Latrines 90%
Clotheslines 100%
Dish Racks 50%
Bathing Area 60%
Animal Enclosure 80%
Proper Garbage Disposal 70%

And though most families have a good pit latrine, they need to clean them more often. Upcoming training sessions will strengthen weaknesses and continue encouraging each family that making the extra effort to clean homes, bathe, wash hands, and treat water is well worth it!

Hand-Dug Well

This particular hand-dug well is being built adjacent to this group’s ongoing sand dam project (click here to see), which will supply clean drinking water once it rains. We have supplied the group with the tools needed for excavation. With the guidance of our artisans and mechanics, the excavated well will be cased, sealed with a well pad, and then finished with a new AfriDev pump.

Excavation takes a month or more on average, depending on the nature of the rock beneath. Construction of the well lining and installation of the pump takes 12 days maximum. The well will be lined with a concrete wall including perforations so that once it rains, water will filter in from the sand dam.

This well will be located in Mbau Village, and will bring clean water closer to families having to walk long distances for their water.

Project Updates


05/29/2019: Mbau Community Well Construction Complete

Mbau Community, Kenya now has a new source of water thanks to your donation. A hand-dug well was constructed adjacent to a sand dam. The dam will build up sand to raise the water table and naturally filter the water available at the well. With both projects complete, now we just have to wait for the rainy season so that the dam will fill and enable the well to produce water year-round. Community members also attended hygiene and sanitation training, and plan to share what they learned with their families and neighbors.

We look forward to reaching out again when this hand-dug well has water!

Hand-Dug Well

Construction for this hand-dug well was a success. We worked with the Yangondi Self-Help Group to construct both the new well and adjacent dam. The members and their families contributed materials and physical labor to complete the projects. In addition, they were trained on various skills such as bookkeeping, financial management, project management, and group dynamics/governance.

When an issue arises in relation to the water project, the group members are equipped with the necessary skills to rectify the problem and ensure it works appropriately. However, if the issue is beyond their capabilities, they can contact their field officer to assist them.

The Process:

We delivered the experts, materials, and tools, but the community helped get an extraordinary amount of work done too. They collected local materials to supplement the project, including sand, stones and water.

A hole seven feet in diameter is excavated up to a recommended depth of 25 feet. (Most hand-dug wells don’t reach that depth due to the existence of hard rocks between 10-18 ft.).

The diameter shrinks to five feet when construction of the hand-dug well lining is completed. This lining is made of brick and mortar with perforations to allow for water to seep through. Sand builds up around the well walls, which will naturally filter the rainwater that’s stored behind the dam.

Once the construction of the lining reaches ground level, a precast concrete slab is laid on top and joined to the wall using mortar. Four bolts for the hand-pump are fixed on the slab during casting. The concrete needs to dry over the course of two weeks before the pump is installed.

The mechanics arrive to install the pump as community members watch, learning how to manage simple maintenance tasks for themselves.

The well is then given another few days after installing the pump to allow the joints to completely dry. The pump was installed level with the top of the sand dam (go here to check it out) because as the dam matures, sand builds up to the top of the wall. Until then, people will climb the concrete steps to get their water.

It could take up to three years of rain (Because sometimes it only rains once a year!) for the adjacent sand dam to build up enough stand to store the maximum amount of water – water available for drinking, cooking, washing, watering animals and irrigating farms.

New Knowledge

The community hygiene and sanitation training was planned by our Water, Sanitation and Hygiene Officer Veronica Matolo. Once the date was decided, the self-help group leaders went door to door to invite everyone. Since this is the second project with this self-help group, it is also the second training with them. The two days served as an opportunity to build on the lessons learned a year ago and find areas in need of improvement.

It was noted that there was a lot of open defecation being practiced in this community. Some 14 sites were found at intervals of less than 100 meters apart. A week before the training was done, follow-ups were conducted in the areas where open defecation was identified. Consultations were made to encourage families to construct latrines in order to eliminate open defecation from the community.

“This hygiene promotion training has helped us stop open defecation and for that reason, we’ll be healthier and less exposed to risks of contracting diseases,” said Mr. Mutheki Muvengei.

There were 21 participants in all. Members agreed that the training would take place at the homestead of Mr. Muvengei; the shade was enough for training although the weather was relatively harsh as it was hot. The environment was conducive and no distractions of any kind were experienced.

The group members expressed keen interest in the training and the topics of discussion. Members were very attentive and showed interest by asking questions and volunteering to be used as examples during the demonstrative learning. The participants were quite aware and informed about most hygiene practices from the previous training that was done.

They decided to train on:

  • Health problems in our community
  • Good and bad hygiene behaviors
  • Choosing sanitation improvement
  • Planning for change
  • Handwashing exercise

The community members really benefited from water treatment discussions. The handwashing exercise was conducted after the disease transmission routes were highlighted by the group members.

Training on tippy tap

The members were taught an easy way of constructing a tippy tap using local materials. The technique behind the handwashing facility was simpler and more hygienic compared to the type that they were taught before. Members vowed to maintain high standards of cleanliness and hygiene in their homesteads as well as on individual levels. This ensures each household can have a handwashing station near their latrine.

Mutheki Muthengei

“We will start treating our drinking water, improve on personal hygiene, compound, food and utensils hygiene, through the installation of sanitation infrastructures like tippy tap and utensil racks,” Mr. Muvengei said.

“The money that we have been using to seek treatment will be invested in other income generating activities because after practicing what has been trained we will be able to prevent ourselves from contracting diseases.”

Thank You for making all of this possible.


The Water Project : kenya19210-community-members-celebrating-the-finished-well


04/16/2019: Mbau Community Well Project Underway

Hundreds of people living in Mbau walk a very long way to get water. Valuable time, energy, and health are lost in pursuit of one of life’s most important resources. Thanks to your generosity, we are working to solve this issue by building a water point nearby.

Get to know this community through the narrative and pictures we’ve posted, and read about this water, sanitation, and hygiene project. We look forward to reaching out again with news of success!


The Water Project : 8-kenya19185-water-storage


Project Photos


Project Type

Dug Well and Hand Pump

Hand-dug wells are best suited for clay, sand, gravel and mixed soil ground formations. A large diameter well is dug by hand, and then lined with either bricks or concrete to prevent contamination and collapse of the well. Once a water table is hit, the well is capped and a hand-pump is installed – creating a complete and enclosed water system.
