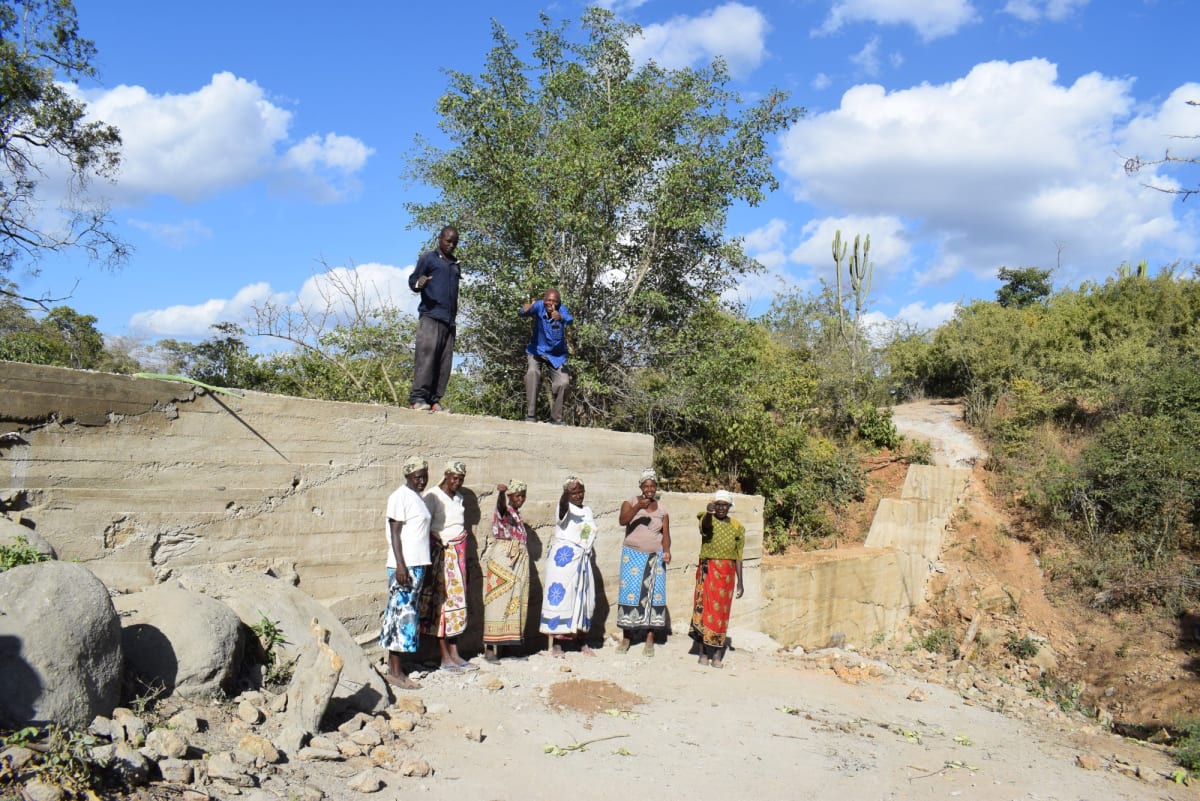

The Water Project: Mbau Community B -  Completed Sand Dam
The Water Project: Mbau Community B -  Construction Site
The Water Project: Mbau Community B -  Community Members Help In Construction
The Water Project: Mbau Community B -  Clearing Land For Dam
The Water Project: Mbau Community B -  Clearing Ground

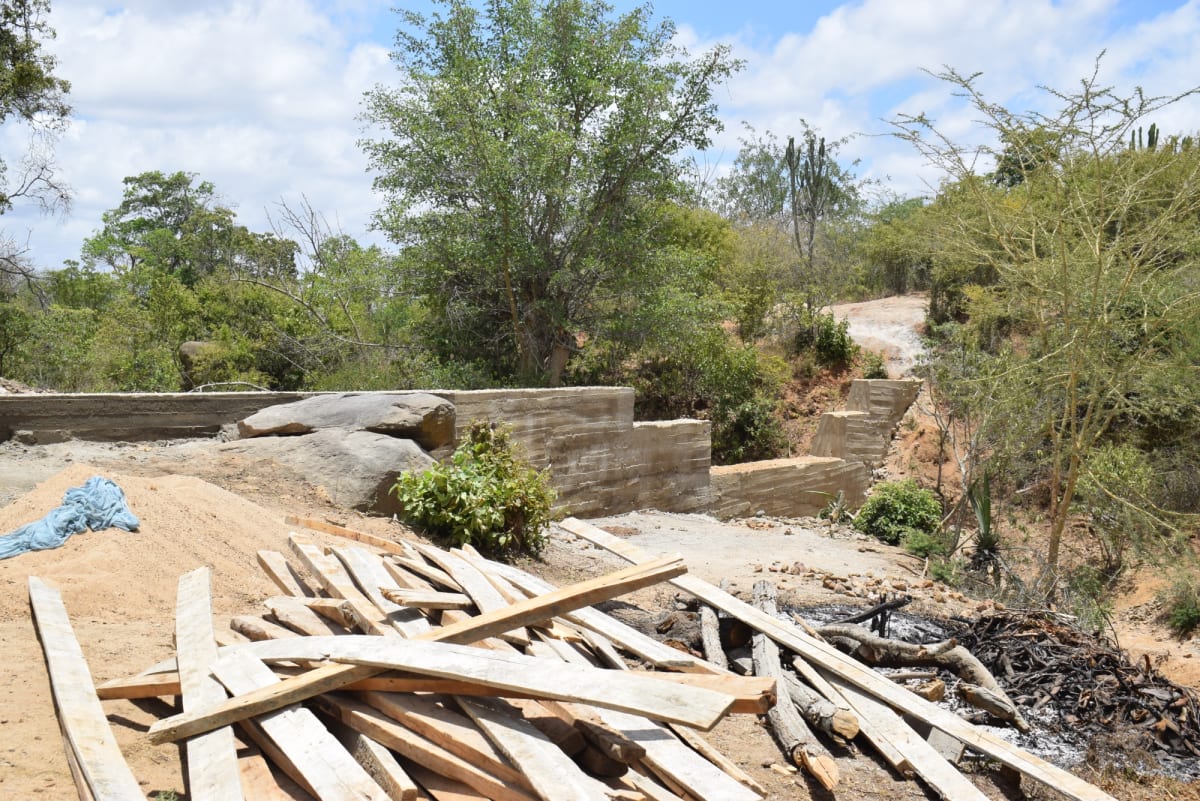

The Water Project: Mbau Community B -  Dam And Construction Materials
The Water Project: Mbau Community B -  Dam Construction

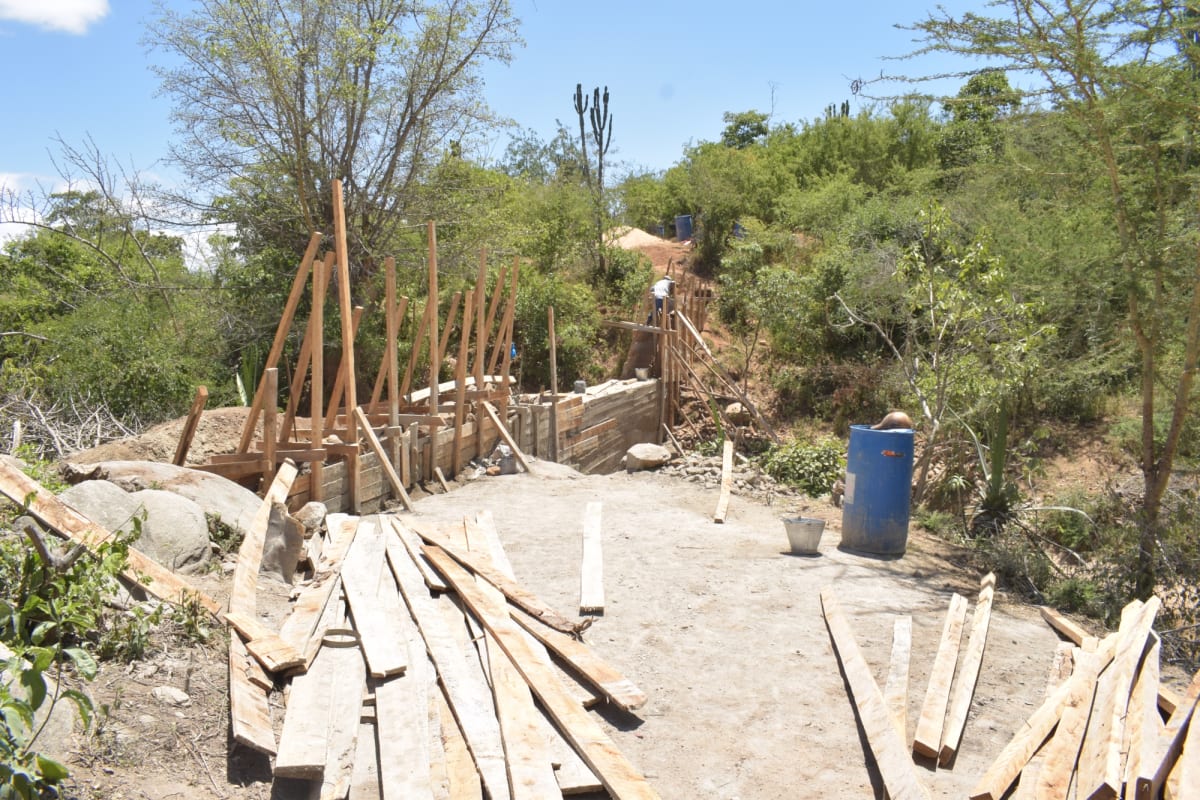

The Water Project: Mbau Community B -  Dam Scaffolding In Place And Cement Curing
The Water Project: Mbau Community B -  Dam Wall
The Water Project: Mbau Community B -  Dam Wing Scaffolding
The Water Project: Mbau Community B -  Digging Out Dam Area
The Water Project: Mbau Community B -  Mixing Sand And Cement

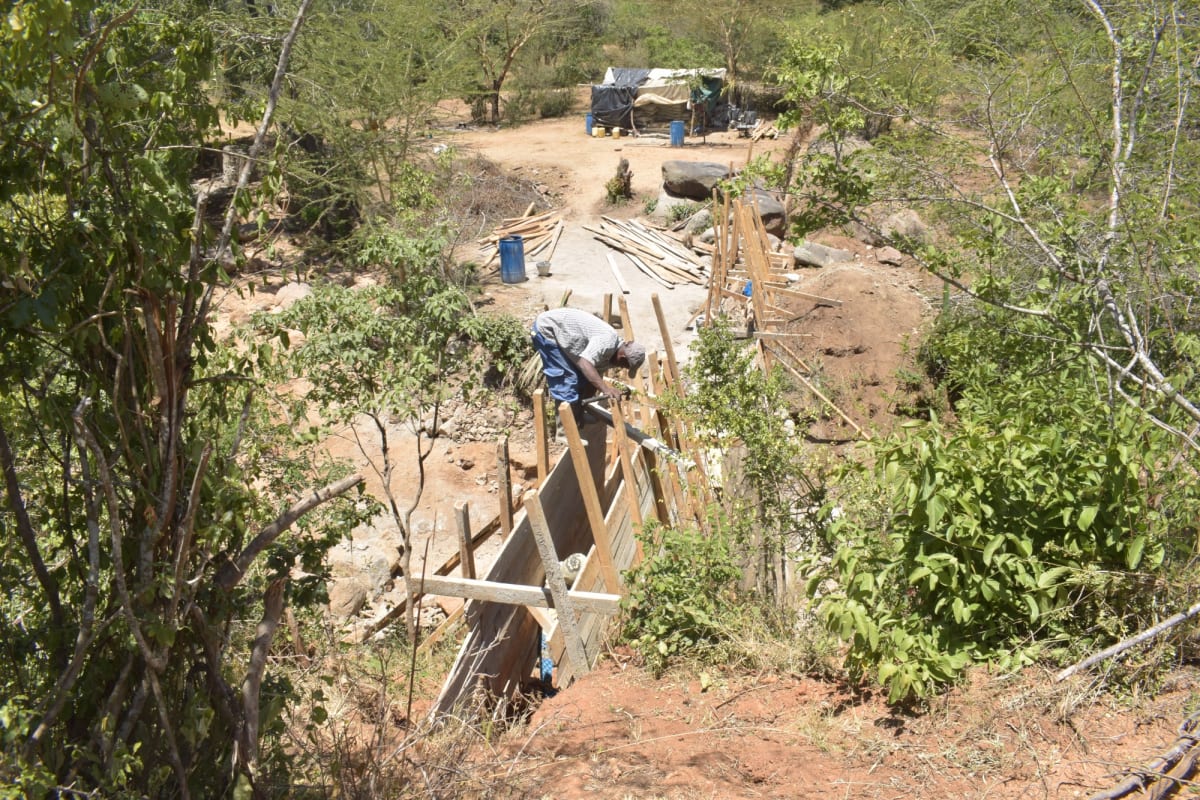

The Water Project: Mbau Community B -  Working On Dam
The Water Project: Mbau Community B -  Day One Training Materials
The Water Project: Mbau Community B -  Day Training Materials
The Water Project: Mbau Community B -  People At Day Of The Training
The Water Project: Mbau Community B -  Testing Out Tippy Tap
The Water Project: Mbau Community B -  Tippy Tap Demonstration
The Water Project: Mbau Community B -  Training Discussions
The Water Project: Mbau Community B -  Training Participants On The First Day
The Water Project: Mbau Community B -  Training
The Water Project: Mbau Community B -  Animal Enclosure
The Water Project: Mbau Community B -  Kalunda With Her Dish Rack
The Water Project: Mbau Community B -  Latrine And Handwashing Station
The Water Project: Mbau Community B -  Water Fetching Containers
The Water Project: Mbau Community B -  Water Storage
The Water Project: Mbau Community B -  Walking To The Mulwa Household
The Water Project: Mbau Community B -  Kalunda Mulwa
The Water Project: Mbau Community B -  Community Members Gathering Stones For More Water Points
The Water Project: Mbau Community B -  Community Members Gathering Stones For More Water Points
The Water Project: Mbau Community B -  Community Members Gathering Stones For More Water Points
The Water Project: Mbau Community B -  Walking Home With Water
The Water Project: Mbau Community B -  First Well System

Project Status



Project Type:  Sand Dam

Regional Program: Southeastern Kenya WaSH Program

Impact: 500 Served

Project Phase:  In Service - Jun 2019

Functionality Status:  Functional

Project Features


Click icons to learn about each feature.



To address water scarcity in arid Southeastern Kenya, we build sand dam and hand-dug well systems to bring water closer to families. Since each community is so expansive, we implement multiple systems over the course of five years to provide enough nearby water for everyone. This is our second year working in Mbau Community, which is home to 1,056 people.

The sand dam and well system constructed last year is now the main water source for everyone living in Mbau. However, hundreds of people still walk a long way to get there. The distance covered varies from household to household, so implementing more projects at different points within the community will help shorten the distance for many more families.

A dam and well can comfortably support 500 people. And since 1,056 people are relying on this one water source, it is often overused and overcrowded.

“Our first water project facility has been very successful in its provision of water. However, it has not been close to all of us in equal measure – exposing others to the water struggles of long distances and the fatigue involved in water collection,” reflected Mrs. Katethya Mutheke.

“We are ready to work on more projects spread across the village so as to reach everyone and address the water challenges facing community members.”

As soon as the community members heard that they have a chance to benefit from another sand dam and well system this year, they immediately started collecting the stones we’d need to start building.

Welcome to the Community

Mbau Community is found in a peaceful, rural area with a significant amount of trees. Among the trees are local homes made of bricks and covered with iron sheets. Other families live in traditional mud huts with grass-thatched roofs.

The average household has five members. The typical male leader in the home has a primary school education. In families where the adults make a decent income, they will hire help in looking after their children. Traditionally, the man is the head of the house and provides for the family. This is however only practical in larger cities. Most men living in rural areas abandon their economic frustrations to heavy drinking, abandoning their families to be taken care of by their wives.

The majority of adults have informal employment like casual labor at Migwani Market and Mwingi Town. Other community members are involved in subsistence farming at their own farms. However, their success depends on the natural rainfall. Most often, rain is too sparse and yields a very small crop.

What we can do:

Our main entry point into Mbau Community has been the Yangondi Self-Help Group, which is comprised of 44 farming households that are working together to address water and food scarcity in their region. These members will be our hands and feet in both constructing water projects and spreading the message of good hygiene and sanitation to everyone.

Training

Yangondi Self-Help Group and Mbau Community have participated in training sessions that teach about important hygiene practices and daily habits to establish in their homes. Taking good care of themselves and their environment will make for a healthy community. There has been progress, but training is still necessary to ensure continued improvement.

Current Sanitation Facility Coverage:

Latrines 90%
Clotheslines 100%
Dish Racks 50%
Bathing Area 60%
Animal Enclosure 80%
Proper Garbage Disposal 70%

And though most families have a good pit latrine, they need to clean them more often. Upcoming training sessions will strengthen weaknesses and continue encouraging each family that making the extra effort to clean homes, bathe, wash hands, and treat water is well worth it!

Sand Dam

Building this sand dam at a spot further down the river will bring water closer to hundreds of other people. After the community picked the spot, our technical team went in and proved the viability by finding a good foundation of bedrock. Now, our engineers are busy drawing up the blueprints. We estimate the dam will be 42.55 meters long and 4.50 meters high.

We are unified with this community to address the water shortage. As more sand dams are built, the environment will continue to transform. As the sand dams mature and build up more sand, the water tables will rise. Along with these sand dams, hand-dug wells (check out the hand-dug well being installed next to this dam) will be installed to give locals a good, safe way to access that water.

With these projects, clean water will be brought closer to hundreds living around Mbau.

Project Updates


06/26/2019: Mbau Community Sand Dam Complete

Mbau Community, Kenya now has a new source of water thanks to your donation. A new dam was constructed on the riverbed, which will build up sand to raise the water table and naturally filter water.

It could take up to three years of rain (because sometimes it only rains once a year!) for this sand dam to reach maximum capacity. Sand dam construction was undertaken simultaneously with the construction of a hand-dug well that will give community members a safe method of drawing water. As the sand dam matures and stores more sand, a supply of water will be available for drinking from the adjacent hand-dug well. To see that hand-dug well, click here.


Construction for this dam was a success!

We worked with the Yangondi Self-Help Group for this project. The members and their families contributed materials and physical labor to complete the projects. In addition, they were trained on various skills such as bookkeeping, financial management, project management, and group dynamics/governance.

When an issue arises in relation to the water project, the group members are equipped with the necessary skills to rectify the problem and ensure it works appropriately. However, if the issue is beyond their capabilities, they can contact their field officer to assist them.

Sand Dam Construction Process

The community members collected all of the local materials like rocks and sand that were required for successful completion of the dam. They also provided unskilled labor to support our artisans. The collection of raw construction materials takes longer than the actual construction. For a super large sand dam, materials collection could take up to four months.

While we delivered more expensive materials like cement, lumber, and work tools, community members gathered sand, stones, and water.

Siting and technical designs were drawn and presented to the Water Resources Management Authority and a survey sent to the National Environment Management Authority for approval before construction started. Once approved, we established a firm bedrock at the base of the sand dam wall. In the absence of good bedrock, excavation is done up to a depth at which the technical team is satisfied that the ground is firm enough to stop seepage.

Then mortar (a mixture of sand, cement, and water) is mixed and heaped into the foundation. Rocks are heaped into the mortar once there is enough to hold. Barbed wire and twisted bar are used to reinforce the mixture. Once the foundation is complete, a skeleton of timber is built to hold the sludge and rocks up above ground level. The process is then repeated until a sufficient height, width and length are built up. The vertical timber beams are dismantled and the dam is left to cure.

After 34 days of construction, the final dam is 42.55 meters long, 4.5 meters high and took 483 bags of cement to build.

New Knowledge

The community hygiene and sanitation training was planned by our Water, Sanitation and Hygiene Officer Veronica Matolo. Once the date was decided, the self-help group leaders went door to door to invite everyone. Since this is the second project with this self-help group, it is also the second training with them. The two days served as an opportunity to build on the lessons learned a year ago and find areas in need of improvement.

It was noted that there was a lot of open defecation being practiced in this community. Some 14 sites were found at intervals of less than 100 meters apart. A week before the training was done, follow-ups were conducted in the areas where open defecation was identified. Consultations were made to encourage families to construct latrines in order to eliminate open defecation from the community.

“This hygiene promotion training has helped us stop open defecation and for that reason, we’ll be healthier and less exposed to risks of contracting diseases,” said Mr. Mutheki Muvengei.

There were 21 participants in all. Members agreed that the training would take place at the homestead of Mr. Muvengei; the shade was enough for training although the weather was relatively harsh as it was hot. The environment was conducive and no distractions of any kind were experienced.

The group members expressed keen interest in the training and the topics of discussion. Members were very attentive and showed interest by asking questions and volunteering to be used as examples during the demonstrative learning. The participants were quite aware and informed about most hygiene practices from the previous training that was done.

They decided to train on:

  • Health problems in our community
  • Good and bad hygiene behaviors
  • Choosing sanitation improvement
  • Planning for change
  • Handwashing exercise

The community members really benefited from water treatment discussions.

The handwashing exercise was conducted right after the participants highlighted disease transmission routes; handwashing is really the easiest and most efficient barrier to the spread of disease. The members were taught an easy way of constructing a tippy tap using local materials. The technique behind the handwashing facility was simpler and more hygienic compared to the type that they were taught before. Members vowed to maintain high standards of cleanliness and hygiene in their homesteads as well as on individual levels. This ensures each household can have a handwashing station near their latrine.

“We will start treating our drinking water, improve on personal hygiene, compound, food and utensils hygiene, through the installation of sanitation infrastructures like tippy tap and utensil racks,” Mr. Muvengei said.

“The money that we have been using to seek treatment will be invested in other income generating activities because after practicing what has been trained we will be able to prevent ourselves from contracting diseases.”

Thank You for making all of this possible.


The Water Project : kenya19185-celebrating-completed-sand-dam


05/07/2019: Mbau Community Sand Dam Underway

Hundreds of people living in Mbau walk a very long way to get water. Valuable time, energy, and health are lost in pursuit of one of life’s most important resources. Thanks to your generosity, we are working to solve this issue by building a water point nearby.

Get to know this community through the narrative and pictures we’ve posted, and read about this water, sanitation, and hygiene project. We look forward to reaching out again with news of success!


The Water Project : 8-kenya19185-water-storage


Project Photos


Project Type

Sand Dam

Seasonal streams (and the sand they carry) are trapped by dams, replenishing the water table and allowing for adjacent hand-dug wells. Almost completely led by community-supplied sweat and materials, and under the supervision of engineers, dams are strategically placed within those dry river-beds. The next time it rains, flood-waters are trapped.

With a sand dam, this trapped sand begins to hold millions of gallons of rainwater. Soon enough, sand reaches the top of the dam, allowing water to continue downstream – where it meets the next dam. The result? A regional water table is restored.
