Project Status



Project Type:  Dug Well and Hand Pump

Regional Program: Southeastern Kenya WaSH Program

Impact: 280 Served

Project Phase:  In Service - Dec 2019

Functionality Status:  Functional

Project Features


Click icons to learn about each feature.



This is our second year working with the 280 people who live in Kala Community. The sand dam we constructed last year helped solve the water needs for some people here, but another one is needed to reach more people. Some members of the community are found far from the current water source. This has forced them to travel for long distances in search of the valuable commodity, and sometimes results in the acquisition of water that is not safe for human consumption.

“The community is still suffering from the universal water access to all challenge even after implementing our first project. Some members are found far from the water point which has exposed them to longer walking distances in search of the important commodity,” explained Ms. Felister Kyalo.

“We are ready to work on more projects evenly distributed within the village so as people can have easy access to water.”

Our main entry point into Kala Community has been the Kwa Kituuti Ntheketha self-help group, which is comprised of 40 farming households that are working together to address water and food scarcity in their region. This is our second year working with this group on a water project. We work with self-help groups for an average of 5 years to sustainably improve access to reliable water. These members will be our hands and feet in both constructing water projects and spreading the message of good hygiene and sanitation to everyone.

The community is found in a peaceful rural area with average vegetation coverage made up of both indigenous and exotic trees species thanks to the initiative of the locals. The area is quite hilly with steep slopes. The majority of the locals have built decent houses made of bricks and covered with iron sheets.

Within Kala Village, the average family is made up of a man, wife, and five children. Many families within this community live in shared compounds hosting all the extended family members and the elderly members of the society.

From the community members interviewed, casual labor was reported as the highest source of income for more than half of the respondents. Some 20 percent said they make a living operating a small business. Other sources of income include formal and informal employment while others indulge in small-scale farming for home use and sale of surplus. The county government is encouraging people here to grow fruit crops such as mangos and oranges. As a result, more and more people are planting new trees.

What we can do:

Training

We will hold hygiene and sanitation training sessions with Kwa Kituuti Ntheketha self-help group, which are also open to non-members. These will teach about important hygiene practices and daily habits to establish in the community at the personal and household levels. Taking good care of self and environment will make for a healthy community.

Community members are recording significant strides towards improving their hygiene and sanitation, a majority of them have kitchens, latrines and other have hand washing facilities. Improvements are needed in ensuring the hand washing facilities have soap and water and regular cleaning of the latrines.

Most households have poor compound hygiene and their general hygiene and sanitation standards are still too low. This also exposes them to risks of contracting diseases such as cholera, typhoid, diarrhea and stomachaches. Most of the latrines visited were mud floor pit latrines, they were cleaned using ash which was noted to have been happening often. None of the latrines visited had water placed near them for use after visiting the facility.

In relation to this, they need improvement on compound hygiene, effective water treatment methods, handwashing training, soap making lessons and knowledge of disease transmission routes.

Hand-Dug Well

This particular hand-dug well is being built adjacent to this group’s ongoing sand dam project (click here to see), which will supply clean drinking water once it rains. We have supplied the group with the tools needed for excavation. With the guidance of our artisans and mechanics, the excavated well will be cased, sealed with a well pad, and then finished with a new AfriDev pump.

Excavation takes a month or more on average, depending on the nature of the rock beneath. Construction of the well lining and installation of the pump takes 12 days maximum. The well will be lined with a concrete wall including perforations so that once it rains, water will filter in from the sand dam.

This well will be located in Kala Village, and will bring clean water closer to families having to walk long distances for their water.

Project Updates

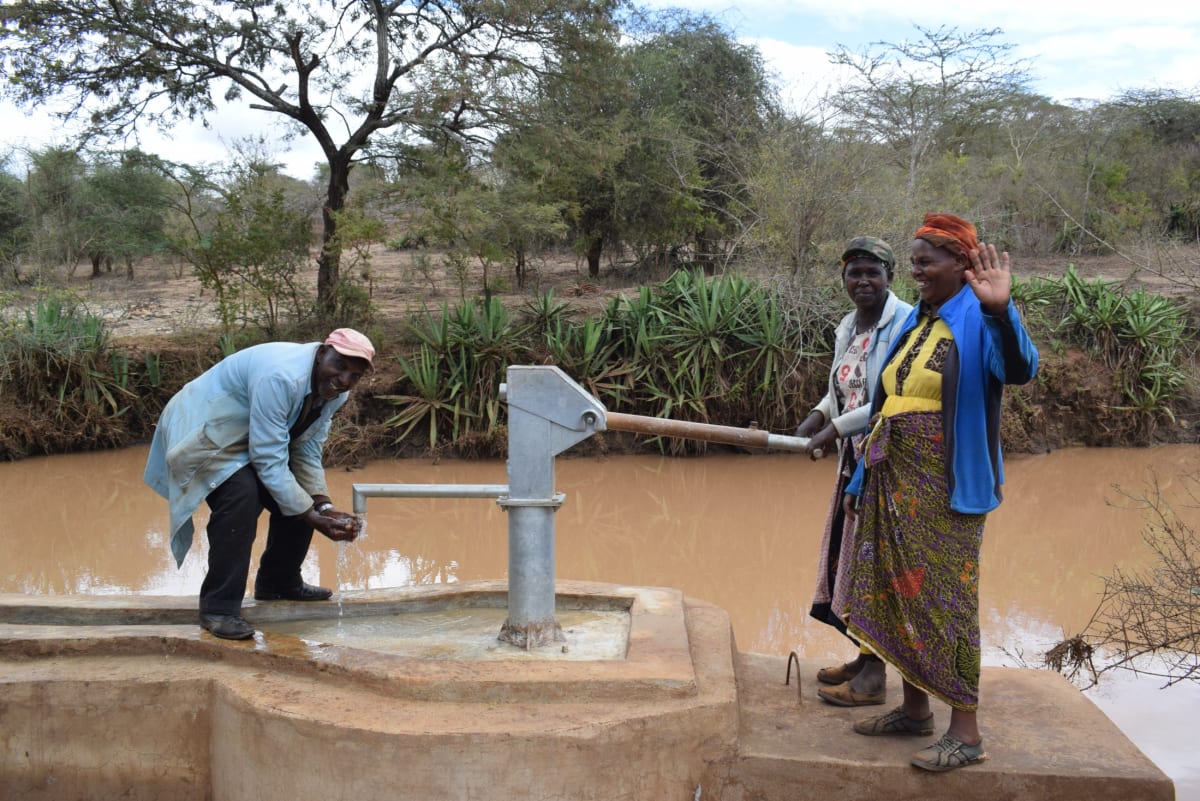

12/18/2019: Kala Community Hand-Dug Well Complete!

Kala Community, Kenya now has a new source of water thanks to your donation. A hand-dug well was constructed adjacent to a sand dam (go here to check it out). The dam was constructed on the riverbed, which will build up sand to raise the water table and naturally filter water. Recent rains have helped the dam begin to build up sand and store water.

It could take up to 3 years of rain (because sometimes it only rains once a year!) for this sand dam to reach maximum capacity. As the sand dam matures and stores more sand, a supply of water will be available for drinking from the well. With this water, the surrounding landscape will become lush and fertile.

“The water project will be instrumental in providing a nearby water source to the community members. We have been walking for long distances to access water but this site will enable us to attain water close to our homesteads,” said Charles Kimatu.

“We are very excited about this project in our community.”

Hand-Dug Well

Construction for this well was a success!

We worked with the Kwa Kituuti Ntheketha Earth Dam Self-Help Group for this project. The members and their families contributed materials and physical labor to complete the project. In addition, they were trained on various skills such as bookkeeping, financial management, project management, group dynamics, and governance. We also conducted a hygiene and sanitation training to teach skills like soapmaking and to help improve behaviors such as handwashing.

When an issue arises concerning the water point, the group members are equipped with the necessary skills to rectify the problem and ensure it works appropriately. However, if the issue is beyond their capabilities, they can contact our team of field officers to assist them.

Hand-Dug Well Construction Process

We delivered the experts, materials, and tools, but the community helped get an extraordinary amount of work done too. They collected local materials to supplement the project, including sand, stones, and water.

The Process

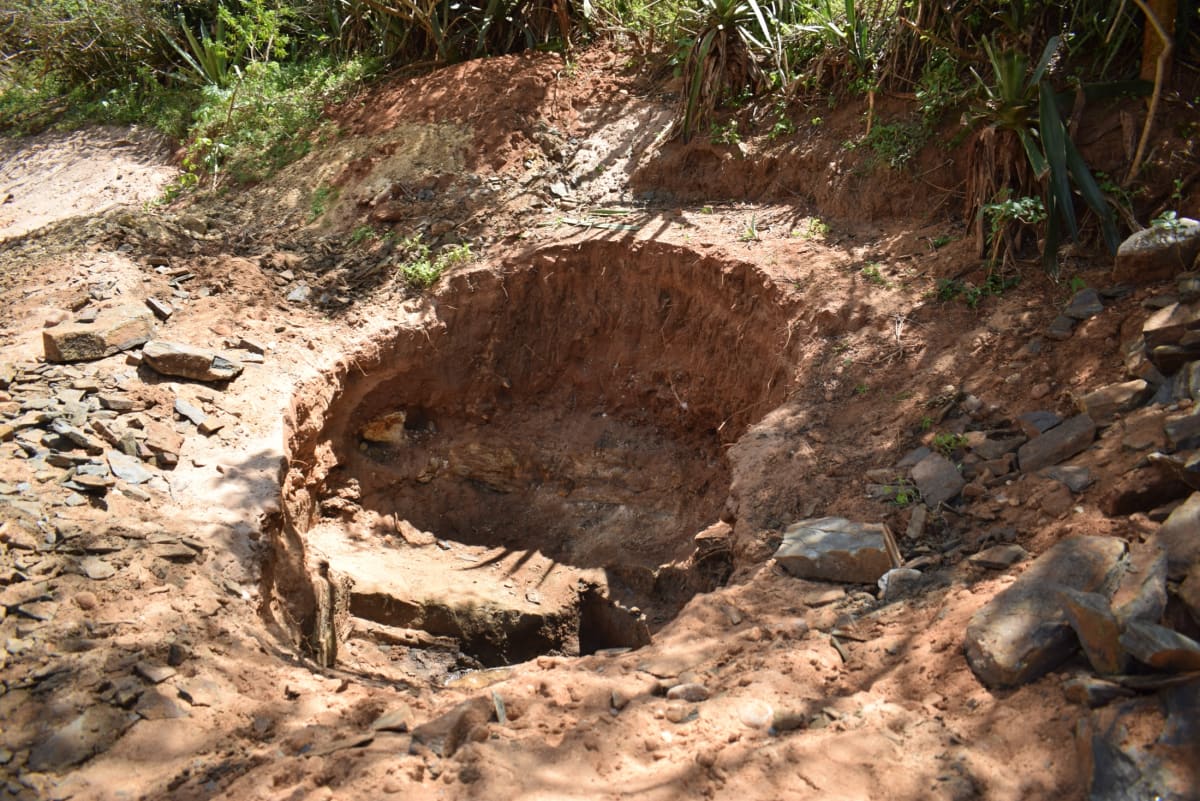

A hole 7 feet in diameter is excavated up to a recommended depth of 25 feet. (Most hand-dug wells do not reach that depth due to the existence of hard rocks between 10-18 feet).

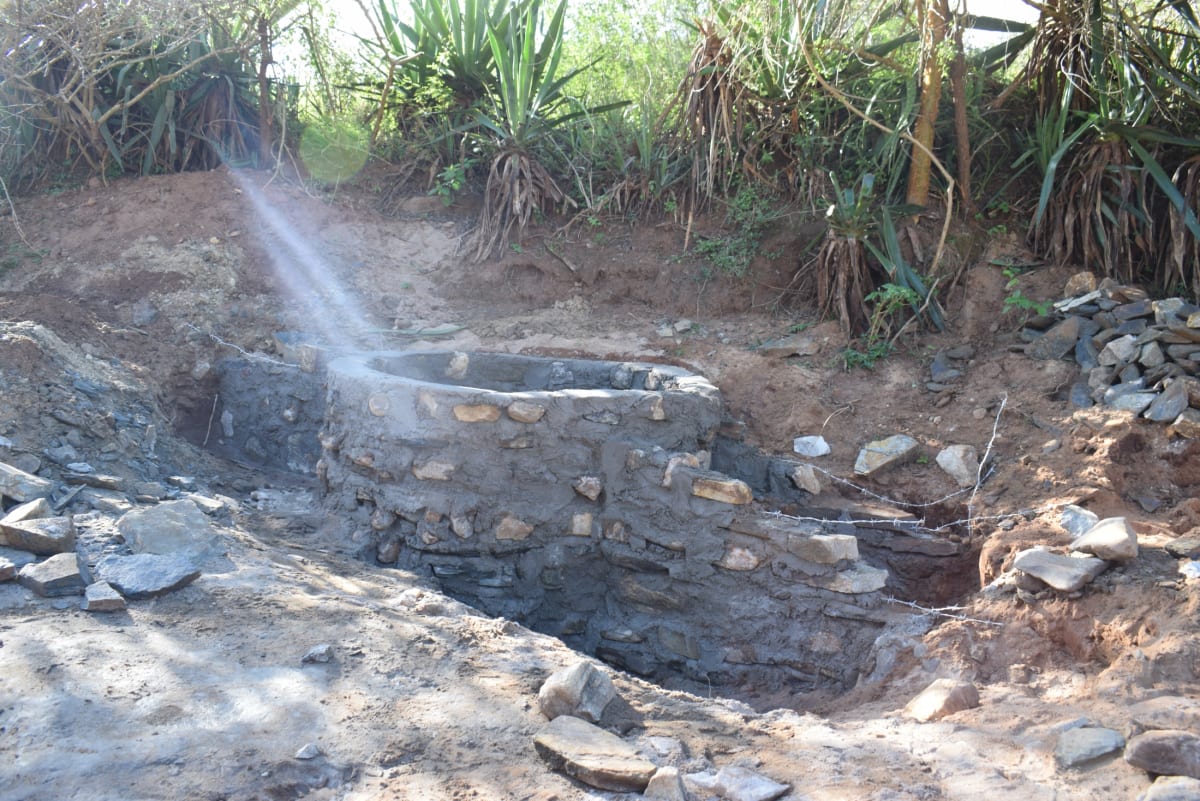

The diameter shrinks to 5 feet when construction of the hand-dug well lining is completed. This lining is made of brick and mortar with perforations to allow for water to seep through. Sand builds up around the well walls, which will naturally filter the rainwater that is stored behind the dam.

Once the construction of the lining reaches ground level, a precast concrete slab is laid on top and joined to the wall using mortar. 4 bolts for the hand-pump are fixed on the slab during casting. The concrete needs to dry for 2 weeks before the pump is installed.

The mechanics arrive to install the pump as community members watch, learning how to manage simple maintenance tasks for themselves.

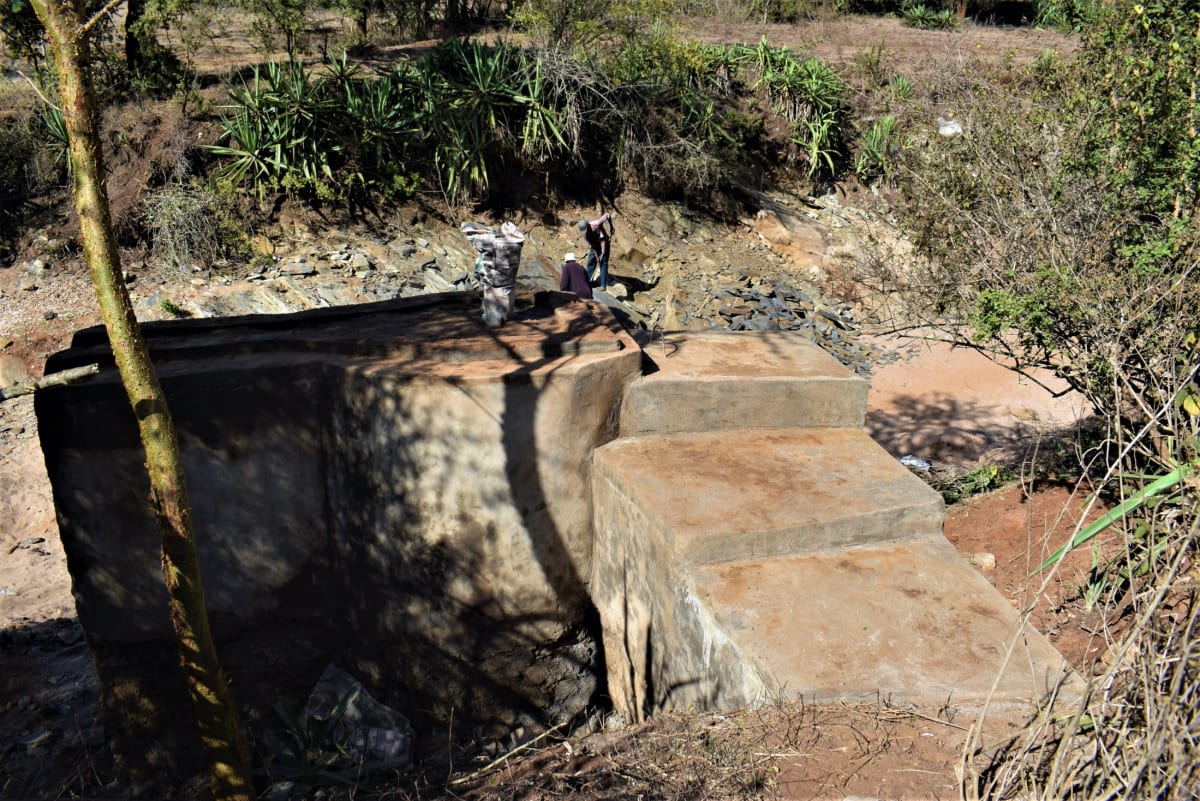

The well is then given another few days after installing the pump to allow the joints to completely dry. The pump was installed level with the top of the sand dam. As the dam matures, sand will build up to the top of the wall. Until then, people will climb the concrete steps to get their water.

New Knowledge

Our Water, Sanitation, and Hygiene Officer notified the area field officer on the training that was scheduled for the group. The local field officer helped mobilize the participants by communicating with them in advance concerning the best dates and location for the training. These self-help group members have constructed 2 sand dams and 2 shallow wells over the past 2 years. Each time, a hygiene and sanitation training was conducted to help improve their health-related habits and to encourage the community members to take care of their water sources and have sanitation facilities at their homes and water points.

Evaluations were carried out based on the action plan that was developed and which the members had promised to implement. The trainer conferred with the field staff about their previous visits to households and interviews with community members to determine which topics the community still could improve upon.

They decided to train on topics including personal hygiene; latrine hygiene, water treatment; handwashing; tippy tap construction; and soapmaking.

The venue for this training was in an old building at Charles Kimatu homestead. Charles is the chairperson of the group. His homestead is near their first dam where they could easily access water to use during the training. The venue was also a central place for all the participants. The weather was cold during the training and the environment was conducive for learning.

The participants were taken through a demonstration on how to make soap for cleaning their latrine pits. The main purpose of the project is to help the members improve their sanitation and also to generate income from the sale of these products.

During the demonstration, 2 donkeys who were used to transport water to the venue started fighting and making a lot of noise, thus interrupting the training session. The training, therefore, had to stop for some time to separate the animals. This made the topic memorable to all of us who were present.

Attendees also learned about constructing tippy tap handwashing stations. During the recent follow-up which was conducted at several homesteads belonging to members of this group, it was noted that some members had forgotten how to construct a tippy tap. The members were therefore refreshed on how to do so.

All of the participants were very excited about the refresher on this topic, and any who still did not have one in their homesteads promised to construct one that same evening.

Charles Kimatu

“Our knowledge of hygiene and sanitation has been increased and we are happy and very ready to change our hygienic behaviors. We will not give up as a group but instead, we will be more focused and more united to improve our lifestyles and hygiene and sanitation,” said farmer Charles Kimatu.

Thank you for making all of this possible!


The Water Project : kenya19227-water-at-the-well


10/04/2019: Kala Community Hand-Dug Well Underway

Some people in Kala Community still travel a long distance to access the water they need to meet their daily needs. Thanks to your generosity, we’re working to install a hand-dug well that will bring water closer to their homes.

Get to know your community through the narrative and pictures we’ve posted, and read about this water, sanitation and hygiene project. We look forward to reaching out with more good news!


The Water Project : kenya19227-carrying-water


Project Photos


Project Type

Dug Well and Hand Pump

Hand-dug wells are best suited for clay, sand, gravel and mixed soil ground formations. A large diameter well is dug by hand, and then lined with either bricks or concrete to prevent contamination and collapse of the well. Once a water table is hit, the well is capped and a hand-pump is installed – creating a complete and enclosed water system.


Contributors

Project Sponsor - Barbara Belle Ash Dougan Foundation
